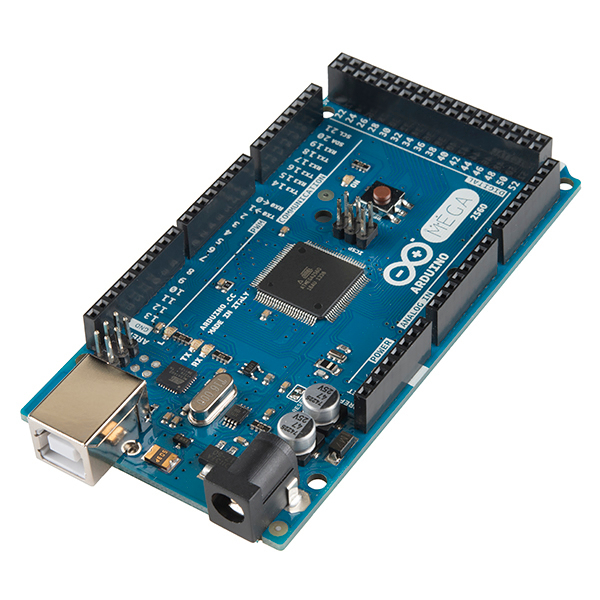

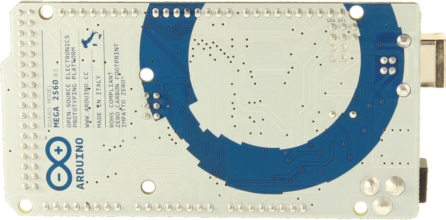

Arduino Mega 2560 R3 ATMEGA16U2 Original


14 in stock


ATmega2560 Funduino  Arduino Mega 2560 R3 Compatible Improved Version

What is the use of Arduino Mega 2560?
The Arduino MEGA 2560 is designed for projects that require more I/O lines, more sketch memory and more RAM. With 54 digital I/O pins, 16 analog inputs and a larger space for your sketch it is the recommended board for 3D printers and robotics projects


54 digital I/O input/output (of which 14 provide PWM)
16 analog inputs
4 UART (hardware serial ports)
16 MHz crystal oscillator
With bootloader, download the program directly via USB without external programmer
USB power supply, or AC-to-DC adapter and battery
Designed based on Arduino official one

Specification  OF Arduino Mega 2560 R3:

Microcontroller: ATmega2560
Operating Voltage: 5V
Input Voltage(recommended): 7V ~ 12V
Input Voltage(limits): 6V ~ 20V
Digital I/O Pins: 54 ( of which 14 provide PWM output )
Analog Input Pins: 16
DC Current per I/O Pin: 40mA
AC Current for 3.3V Pin: 50mA
Flash Memory: 256KB ( of which 4KB used by bootloader )
Clock Speed: 16MHz
