100% Original Arduino R3 UNO SMD Atmega328P in Pakistan


  1. Original LOGO
  2. Double Oscillator
  3. Arduino SMD Original

184 in stock

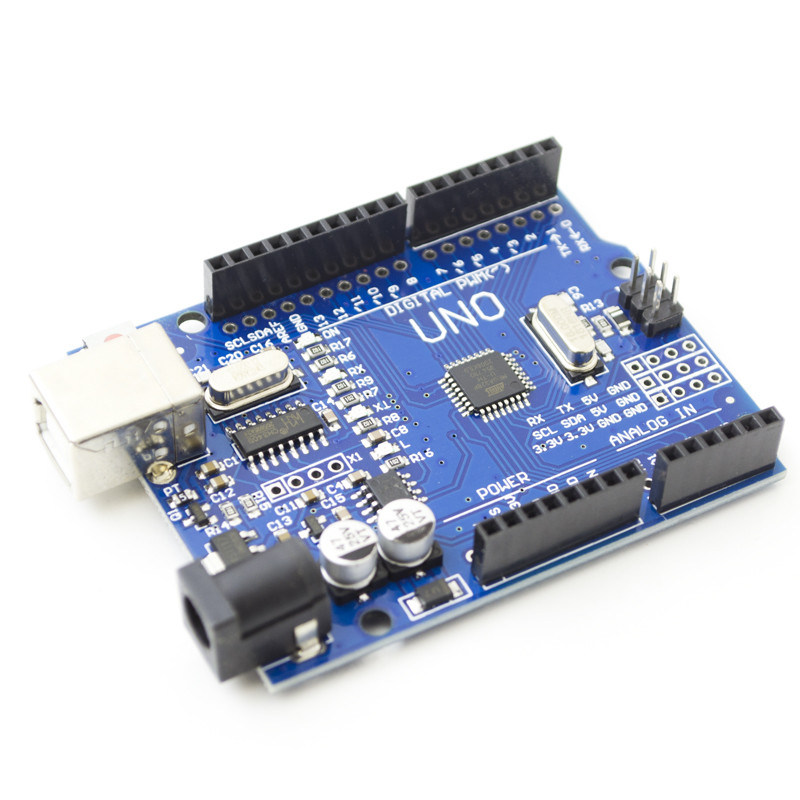

Arduino UNO R3 SMD in Pakistan


Arduino R3 UNO SMD Is the most popular module in the market. This Arduino UNO SMD is the best product for Beginners in the microcontroller world or in the electronics world. This microcontroller contains digital inputs/output. It contains 6 PWM outputs and 6 analog inputs. This SMD microcontroller supports SPI and I2C buses. Arduino R3 UNO Atmega328P SMD supports these buses for multiple clocks, displays, and other devices. This Arduino UNO SMD contains parallel holes for all pins. Users can attach solder wires or GOLDPINs with it. We can give 12V through power supply because it has a voltage stabilizer. This feature facilitates use that we can program it anywhere.


This Arduino R3 UNO SMD is compatible with Arduino UNO, but this SMD microcontroller uses a surface-mount version of the ATmega328P instead of a through-hole version. SMD Arduino is made for a response to a shortage in supply of the through-hole ATmega328P. This SMD board is also based on ATmega328. Get all Types of Arduino Boards, Drone Frames, Sensors, Modules, and Much More at Pakistan’s Best Online Store epro.pk.


Product Features of Atmega328P SMD:


  • Arduino SMD is fully compatible with Arduino UNO R3. We can program it through the Arduino IDE environment using the available libraries.
  • It has a 16MHz Clocked circuit.
  • It contains 14 digital I/O pins.
  • It has 6 PWM channels.
  • It also contains 6 analog inputs.
  • It has a USB connector.
  • It also has a DC power socket.
  • It has a RESET button.



Technical Data of CH340G ATmega328P Development Board Compatible with Arduino:


  • It has 7 to 12V power supply input.
  • Its input voltage limit is 6 to 20V.
  • It is fully compatible with Arduino UNO.
  • Its microcontroller is ATmega328.
  • Its operating voltage is 5V.
  • It has a CH340 USB control system.
  • 16MHz is its maximum clock frequency.
  • It has 2Kb SRAM memory.
  • It has 32Kb flash memory.
  • It has 1Kb EEPROM memory.
  • 40mA is single pin current efficiency.
  • It has 14 I/O pins, and 6 PWM pins included.
  • UART, SPI, I2C is its serial interface.
  • Its size is 75 x 54 x 15 mm.
  • 2.54mm is pin spacing between them.
