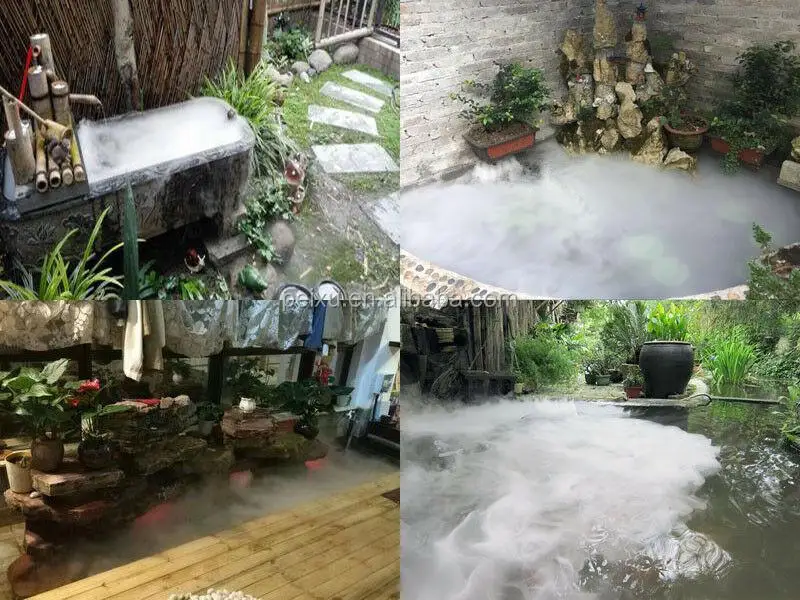

5 head Ultrasonic Humidifier can be used in many horticultural application including hydroponics, propagation, foliar feeding, grow room and greenhouse humidity generation, etc. Place the nebulizer smoothly in a water container and inject an appropriate amount of clean water ( when the water level is lower than the water level sensor switch, the product will not spray; when the water is higher than water level sensor switch , the spray effect is not good. The nebulizer will generate heat in the working process, and water temperature will rise. It is recommended that this nebulizer should be used in the water container with good heat dissipation conditions.)
Plug the nebulizer power cord into an external DC power source. Turn on the power, the product can work normally.
2. Nebulizer must be working in the water in order, before using the water and then put it in its power, and to ensure that there is water in a spray film surface state, in order to avoid damage to the nebulizer.
3. When you stop using the nebulizer before disconnect the power, then remove from the water atomizer.
4. When using the nebulizer, please use the output power of more than 250W, the output voltage is DC45 ± 5V supply.
5. When generating a plurality of atomizer is set using the same container, each with a separate power supply need not connect a plurality of the nebulizer for use with a single power supply, and note the respective atomizer are mutually conductive housing, in order to prevent the work galvanic corrosion.
6. Mist generated by the nebulizer must use fan forced discharge, and each group of nebulizer reserved 350CM2 of flat space, the water temperature is too high to avoid shortening the life of the nebulizer.
7. Nebulizer not suitable for corrosive liquid atomization, to avoid damage to the atomizer and atomized metal sheet.
8. Do not damaged during installation level sensor switch, switch failure caused the water level to prevent runaway nebulizer. Level switch should stop after the damage, otherwise there will be further damaged dry atomized piece atomizer. At this point in order to use the required repairs by qualified service personnel after a good.
Details of 5 head Ultrasonic Humidifier
- Atomized water quality and adaptable, the same nebulizer use pure water or tap water can work
- The power for a wide range of products to ensure that the changes in the city still under normal use larger occasions
- There boot delay circuit, to avoid a power surge current excessive damage to the line
- A single sprinkler line using an independent design, and the use of over-current protection circuit, avoiding the burning of a nozzle damaged power lines, and does not affect the normal operation of other jets
- The machine current voltage and temperature by less influence, because each nozzle current electronic automatic adjustment, the current increasing temperature will decrease (does not affect the amount of fog), to avoid serious power tube heat current increasing the vicious cycle and damage the atomizer
- This product uses high thermal conductivity, high corrosion resistance, good mechanical strength of the metal shell, reducing the temperature difference between the water inside the host, thereby prolonging the life of the product.
- Housing Material: Stainless steel
- Power: AC 24V, 120W
- Mist Quantity: 1600 ml/hour
- Size: Dia. 85 x 55mm
- Cable length: 10m
- Ceramic Disc: 1.7 MHz, Dia. 20mm
- Transformer Voltage: 110V
- Working current: 4.8A-5A
- Cooling model: Air-cooled
- Power line: 1.5 m
- Water tempreture: 5-50°C (the normal tempreture is 30°C)
- Water level: 6cm
- Packing size: 320x125x180mm
- Packing weight: 3 kg
- 1 x 5 Head Ultrasonic Mist Maker with power adapter
- 1 x Bouy
