15A 400W MOSFET Trigger Module Switch

(1 customer review)

150

Description

Module Highlights:

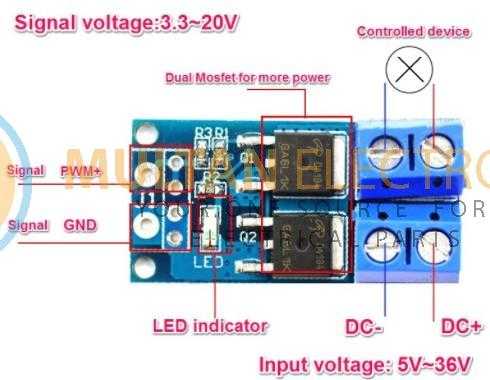

15A 400W MOSFET Trigger Module

How do you trigger a Mosfet?
To turn the MOSFET on, we need to raise the voltage on the gate. To turn it off we need to connect the gate to ground. P-Channel – The source is connected to the power rail (Vcc). In order to allow current to flow the Gate needs to be pulled to ground.

1. The use of imported dual-MOS parallel active output, lower resistance, more current, strong power at room temperature, 15A, 400W, to meet the most use of the equipment
2. Wide voltage, the perfect support for PWM 15A 400W MOSFET Trigger Module
3. Easily control high power devices
Product specifications and applications:
1: Operating Voltage: DC 5V – 36V;
2: The trigger source: digital high-low (DC3.3V – 20V), can be connected microcontroller IO port, PLC interfaces,
DC power, you can access the PWM signal, the signal frequency 0–20KHZ perfect support.
3: output capacity: DC DC 5V – 36V, at room temperature, continuous current 15A, power 400W! Lower auxiliary
cooling conditions, the maximum current up to 30A.
4: Applications: You can control the output of power equipment, motors, light bulbs, LED lights, DC motors, micro-pumps,
solenoid valves, etc., you can enter
PWM, motor speed control, lamp brightness.
5: Availability: unlimited switch; Operating temperature: -40-85 ;

Testing 15A 400W Trigger Switch Drive
