Arduino UNO R3:

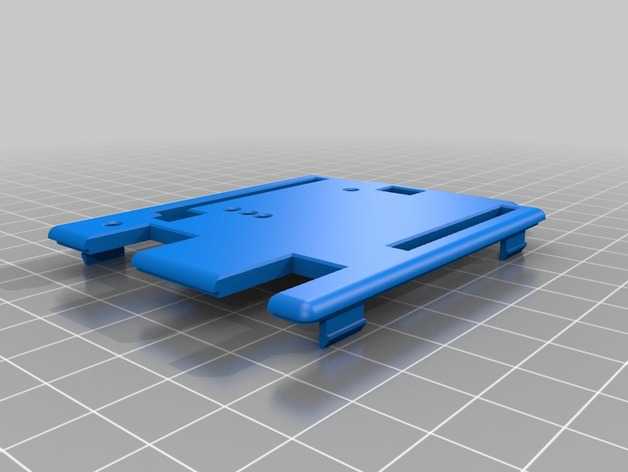

Arduino UNO R3 Casing To be honest its better than official arduino UNO R3 board, the reason is that it have 2 keys, extra Male headers in parallel with female headers and original Atmel ATMega328 micro controller which is removable like the official arduino UNO R3.
Arduino Uno R3 is a microcontroller-based development board. Arduino UNO and other boards are able to read inputs – light on a sensor, a finger on a button, or a Twitter message – and turn it into an output – activating a motor, turning on an LED, publishing something online by utilizing this R3 kit. You can tell your Arduino UNO r3 what to do by sending a set of instructions to the microcontroller on the board. To do so you use the Arduino programming language (based on Wiring), and the Arduino Software (IDE), based on Processing.
arduino uno board microcontroller atmega based on the ATmega328P (datasheet). It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz quartz crystal, a USB connection, a power jack, an ICSP header and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started. arduino uno board microcontroller atmega You can tinker with your UNO without worring too much about doing something wrong, worst case scenario you can replace the chip for a few dollars and start over again.
you Can also buy related products ATMEGA328 MICROCONTROLLER DIP28 IC Pak
- On the Software on the Forum
- On Projects on the Arduino Forum
- On the Product itself through our Customer Support
Specifications Of Arduino UNO R3 Casing:
- Microcontroller ATmega328 DIP
- Operating Voltage 5V
- Input Voltage (recommended) 7-12V
- Input Voltage (limits) 6-20V
- Digital I/O Pins 14 (of which 6 provide PWM output)
- Analog Input Pins 6
- DC Current per I/O Pin 40 mA
- DC Current for 3.3V Pin 150 mA
- Flash Memory 32 KB (ATmega328) of which 0.5 KB used by bootloader SRAM
- 2 KB (ATmega328) EEPROM
- 1 KB (ATmega328)
- Clock Speed 16 MHz
Best Online Shopping website for Arduino. Here you get Arduino UNO R3 at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Sukkur, Peshawar, Multan, Quetta, Faisalabad and all over Pakistan.
|Input Voltage (recommended)||7-12V|
|Input Voltage (limit)||6-20V|
|Digital I/O Pins||14 (of which 6 provide PWM output)|
|PWM Digital I/O Pins||6|
|Analog Input Pins||6|
|DC Current per I/O Pin||20 mA|
|DC Current for 3.3V Pin||50 mA|
|Flash Memory||32 KB (ATmega328P)
of which 0.5 KB used by bootloader
|SRAM||2 KB (ATmega328P)|
|EEPROM||1 KB (ATmega328P)|
|Clock Speed||16 MHz|
