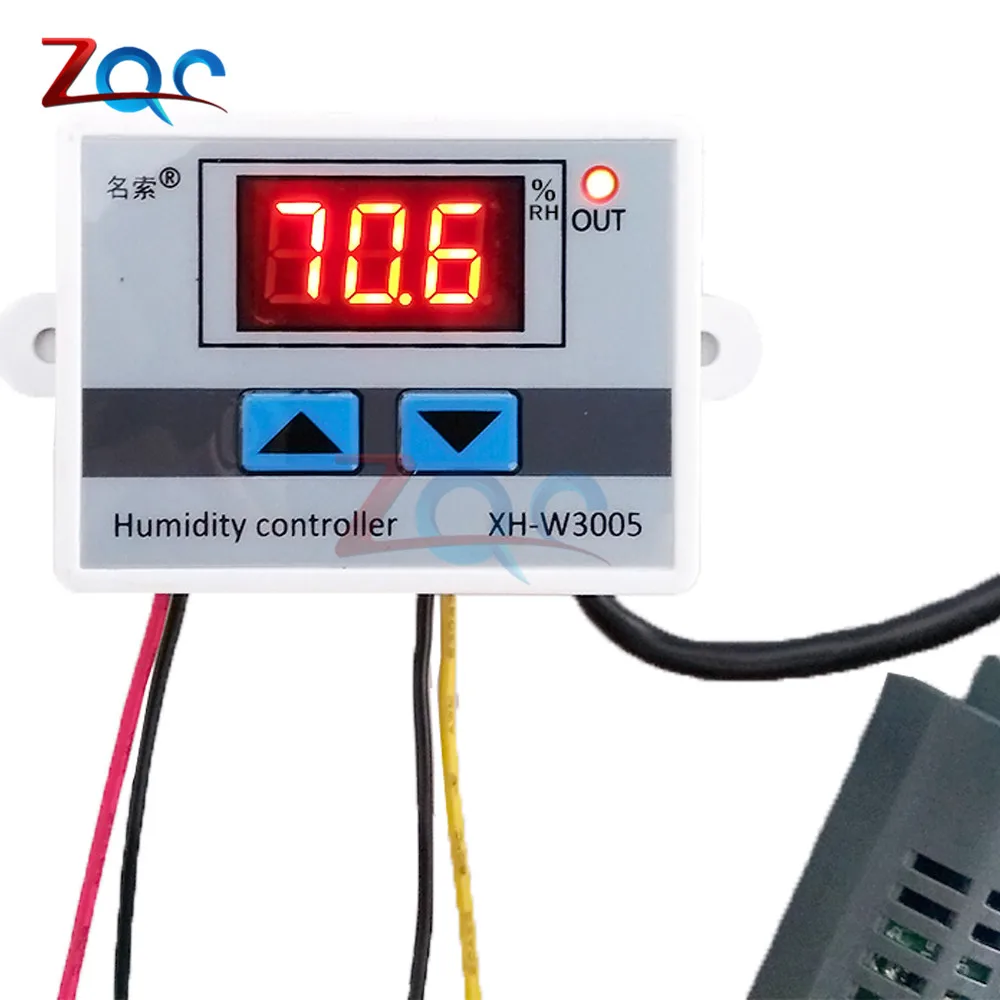

XH-W3005 Humidity Controller 220V Pakistan

1,950

Description

XH-W3005 LED Digital Humidity Controller 220V 12V 24V Hygrometer Humidity Control 0 -99%RH Hygrostat SHT20 Humidity Sensor Probe

Specification:
Model: XH-W3005
Moisture range: 0%~99%RH
Humidity control precision: 0.1% RH
Measuring Accuracy: ±2%RH
Load Power:  12V 120W/ 24V 240W/220V 1500W(Optional)
MAX Output: 10A
Output type: DC
Size: 60*45*31mm
Instruction XH-W3005 Humidity Controller 220V:
Connect to power supply , diplay Instructions  humidity
Set start the humidity:  Press the UP button display start the humidity , long press about 3s the  start the humidity flashing , then press the  UP or  Down adjust the  set
Set to stop the humidity: Press the Down button display Stop the humidity , long press about 3s the Stop the humidity flashing , then press the  UP or  Down adjust the set
Restore the factory Settings:  press the  UP and Down button at the same time , will display 888 then will Automatically detect the humidity.
What does a humidity controller do?
The Humidity Sensor measures the relative humidity inside the chamber. The Sensor output signal is then compared to the set point. If the humidity measured in the chamber exceeds the set point by more than 0.5% R.H. the Controller turns on the pump which then circulates the test chamber air through the desiccator.
How do I set humidity control?
Use your thermostat to control your home’s humidity.
  1. Adjust the temperature on the thermostat. …
  2. Set the thermostat to “Auto.” Using the auto setting on the thermostat lets the evaporator coils cool sufficiently
Package Included:

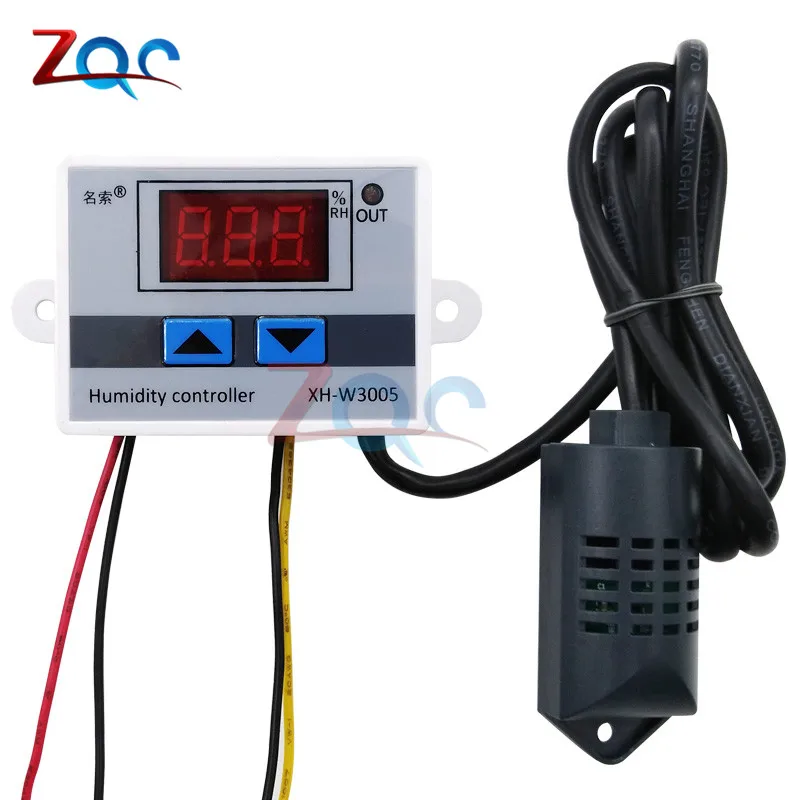

1 x Humidity Sensor Probe
https://youtu.be/N4Quw1zShKQ
