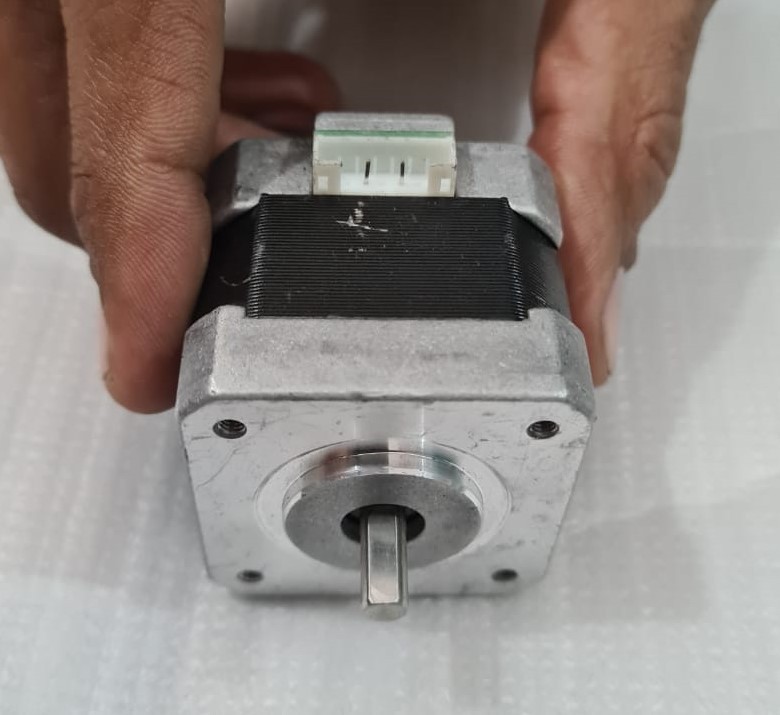

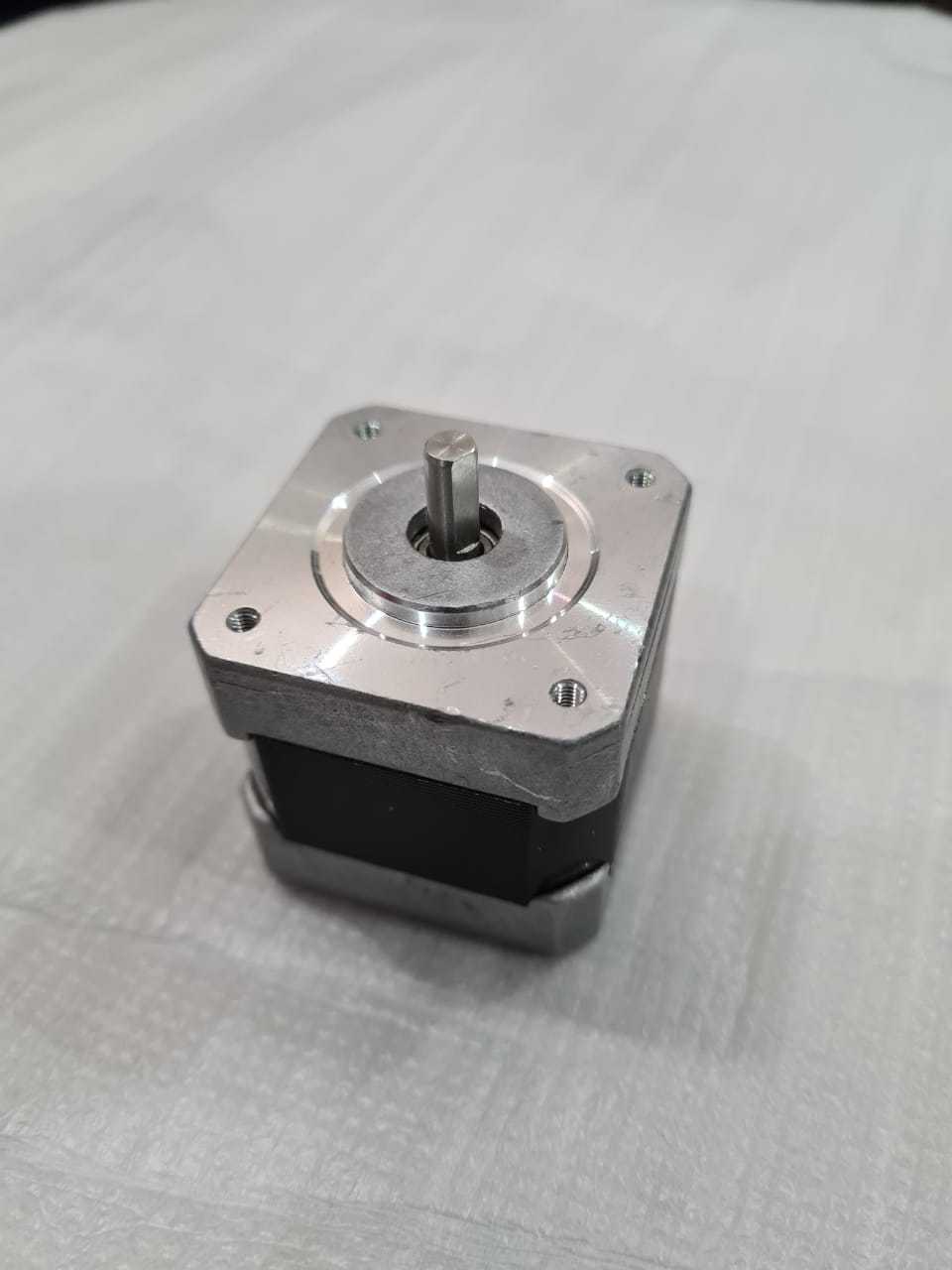

D Cut Shaft Nema 17 Stepper Motor For 3D Printer & CNC is a standard sized stepper motor. Nema17 used in many machines such as 3D Printers, CNC Router and Mills, Camera Platforms, XYZ Plotters, etc. 4 wire Bipolar Stepper Motor is High precision 4–wire bipolar stepper motor, size in Nema 17, 1.8 deg. step angle (200
One of the most parameters for the stepper motor. You can use A4988 or drv8825 driver to run this motor.
NEMA 17 stepper motor is a stepper motor type specified by NEMA. steppers have a 1.7 x 1.7 inch faceplate. … steppers are commonly used in 3D-printers, CNC router, Linear actuators and mid-torque precise movement applications.
Nema 17 is a hybrid stepping motor with a 1.8° step angle (200 steps/revolution). Each phase draws 1.2 A at 4 V, allowing for a holding torque of 3.2 kg
Features Of D Cut Shaft Nema 17 Stepper Motor For 3D Printer & CNC:
- Stepper motor is known by its property to convert a train of input pulses into a precisely defined increment in the shaft position.
- High-quality motor that can be used for a long time without stuck.
- It Has a quite stable performance during work and will not lose a step.
- Low noise and big torque, this is a great choice if you need a stepper motor.
- Stepper motor can be widely used for a 3D printer, CNC engraving machine, etc.
Specifications of
D Cut Shaft Nema 17 Stepper Motor
:
- Shaft Dia: 5mm
- Step Angle: 1.8°
- Current: 1A
- Resistance: 5.6Ohm
- Inductance: 2.8mH
- Holding Torque: 35N.cm
- Braking Torque: 2N.cm
- Rotor Inertia: 54g.cm⊃2;
- Temperature Rise: 80℃ (rated current, 2 phase on)
- Operating Temperature: -20℃~+70℃
- Insulation Resistance: 100 MΩ Min. , 500VDC
- Clearance: 0.02Max. (450g-Load)
- Axial Clearance: 0.08Max. (450g-Load)
- Pressure: 70N (20mm from the flange)
- Axial Pressure: 15N
Package Includes:
1 x Only Stepper motor
Note:
- Used Product
