Sale!

16×4 LCD Display Blue in Pakistan

600.00  530.00

Stock Available

Continue Shopping

Description

Blue Color 16x4A LCD 16X4 LCD Display is 16 characters wide,4 rows character lcd module,controller (Industry-standard compatible controller),6800 4/8-bit parallel interface,single led backlight with yellow green color included can be dimmed easily with a resistor or PWM,stn-lcd
Description

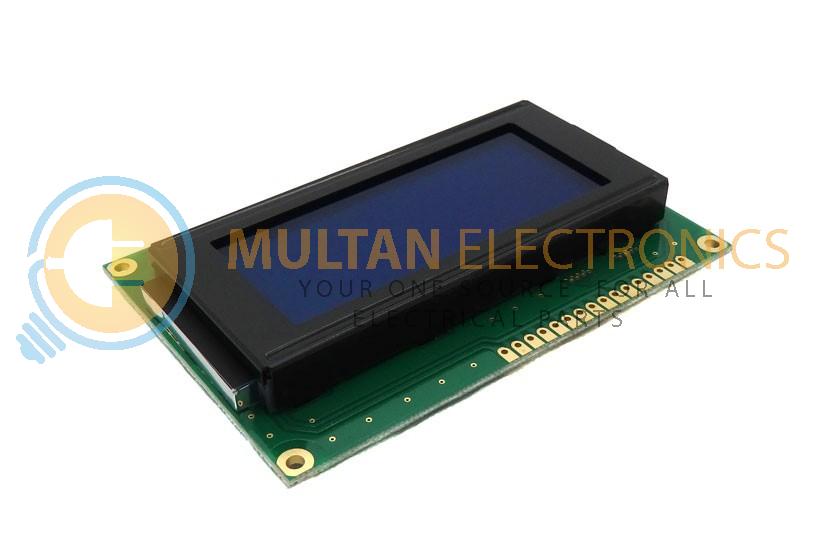

This is a 16×4 LCD display blue LED backlight. This item is new and has never been used.
Specifications:
Manufacturer: Winstar
Part Number: WH1604A-TMI-JT
Module Dimensions (mm): 87 x 60 x 13.6
LCD Type: STN Negative, Blue, Transmissive
Backlight Type: LED White
Supply voltage for logic max: 7V
Supply voltage for LCD max: 13V
Supply current type: 1.2mA (57-2240 1.5mA)
Number of characters: 16 characters x 4 lines
View area (mm): 62 x 26
Active area (mm): 56.2 x 20.8
Dot size (mm): 0.55 x 0.55
Dot pitch (mm): 0.6 x 0.6
Character size (mm): 2.95 x 4.75
Character pitch (mm): 3.55 x 5.35
Duty: 1/16
Operating temperature: –20°C to +70°C
