NVIDIA Jetson Orin Nano Developer’s Kit Case

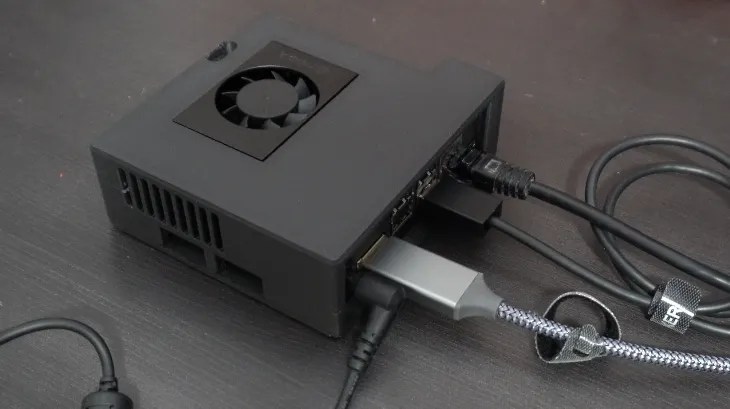

Simple case for an NVIDIA Jetson Orin Nano Developer’s Kit. All ports are exposed.

There are four versions of the main case:

• Orin_nano_case_main has holes for accessing the terminal block of the recommended CAN bus (Waveshare SN65HVD230 CAN Board).
• Orin_nano_case_main_No_CAN_holes doesn’t have these holes and looks more sleek.
• The versions with “No_inserts” don’t need threaded inserts and just have 2.9 mm holes for M3 bolts to bite straight into the plastic. Choose these files if you don’t want to use inserts and don’t anticipate opening the box too many times.

Four M3 threaded inserts are required for the main part of the case if you choose the non-“No_Inserts” files. These go in the holes on the main case to allow the base to easily be attached/detached. I used M3 x 6 bolts here.

Supports are needed for one small section. All 3mf files have the supports added.
