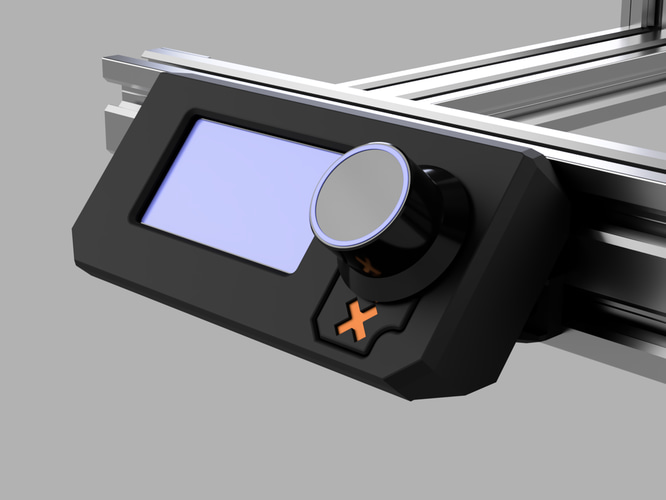

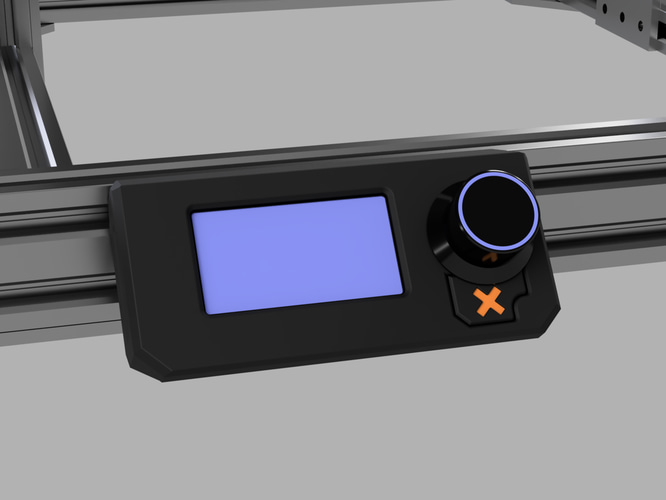

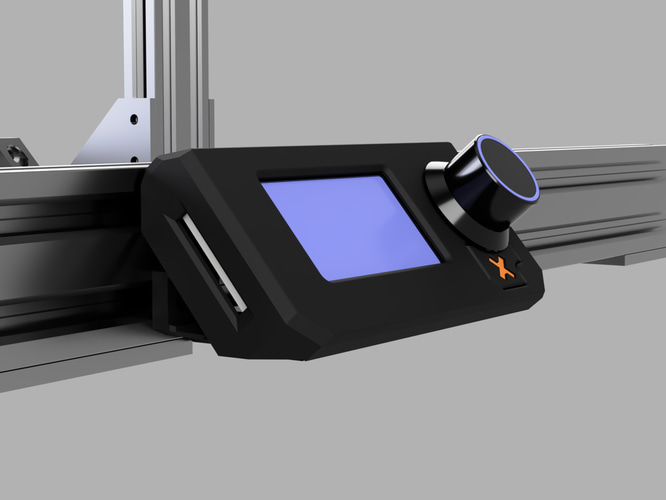

Mini 12864 LCD Display case only Housing for the fysetc mini12864 LCD Display that can be mounted to 2020 vslot extrusion.
To make the reset button work you have to replace the tactile switch button by a lower profile version. This requires some experience with soldering, but its actually quite a simple job. Alternatively you could try to trim it down.
All modifications at your own risk 😉
Hardware needed:
- 1x 3D printed Mini 12864 LCD Display case
- 4x 10 or 12mm M3 screw to mount the display/case
- 2x 10mm M5 screw/TNut to mount the assembly to the 2020 vslot extrusion
[V2] 2020-10-10
- Increased size of reset button
- Made reset button mechanism more rigid
- Moved reset button cross down a little to make it more visible
- Overhauled mountings to mitigate collisions with the metal clamps of the display
- Added variant without the SD-Card slot
