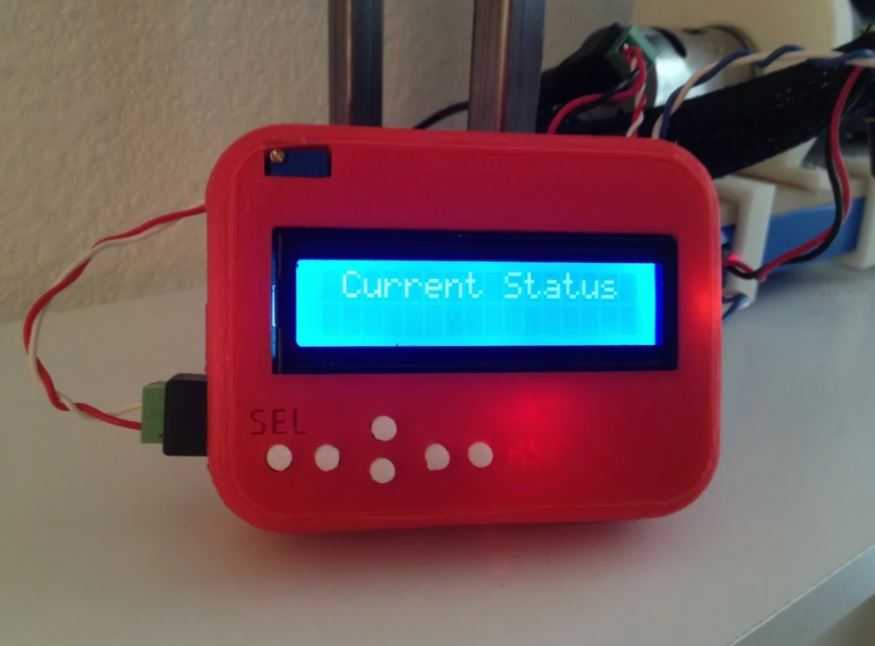

LCD 1602 Keypad shield & Arduino Casing with Buttons

This is a case designed for the Sainsmart LCD shield for Arduino with buttons. The Arduino is an UNO R3. It has slots for a power connector and a USB cable. It has mounting screws holes to hold the shield in place LCD shield for Arduino

This is a very popular LCD Keypad shield for Arduino or Freeduino board. It includes a 2×16 LCD display and 6 momentary push buttons. Pins 4, 5, 6, 7, 8, 9 and 10 are use to interface with the LCD. Analog Pin 0 is use to read the push buttons. The LCD shield supports contrast adjustment and backlit on/off functions. It also expands analog pins for easy analog sensor reading and display.

The LCD Keypad shield is develop for Arduino compatible boards, to provide a user-friendly interface that allows users to go through the menu, make selections etc. It consists of a 1602 white character blue backlight LCD. The keypad consists of 5 keys — select, up, right, down and left. To save the digital IO pins, the keypad interface uses only one ADC channel. The key value is read through a 5 stage voltage divider.

• 5 Push buttons to supply a custom menu control panel
• RST button for resetting arduino program
• Integrate a potentiometer for adjusting the backlight
• Expanded available I/O pins
• Expanded Analog Pinout with standard DFRobot configuration for fast sensor extension
• Dimension: 80 x 58 mm
