For all version of arduino Main board, 2009 , UNO, mega 1280, mega 2560
comes example code
direct plug puzzle board, NO soldering needed.
Five momentary push buttons (4+ joystick select button, just like the playstation 3 analog stick push button)
two-axis thumb joystick
The push buttons are connected to Arduino digital pins 2-6; the related pin will be low when a certain button is pressed. Joystick
Y-Axis movement will produce a proportional analog voltage on analog pin 0, while, Joystick X-Axis movement will produce a analog signal on analog pin 1.
Add nRF24L01 RF interface
Add Nokia 5110 LCD interface, so very easy to game development.
Adding a Bluetooth module interface, convenient Bluetooth wireless serial communication.
Add I2C communication interface, easy connectivity to I2C devices

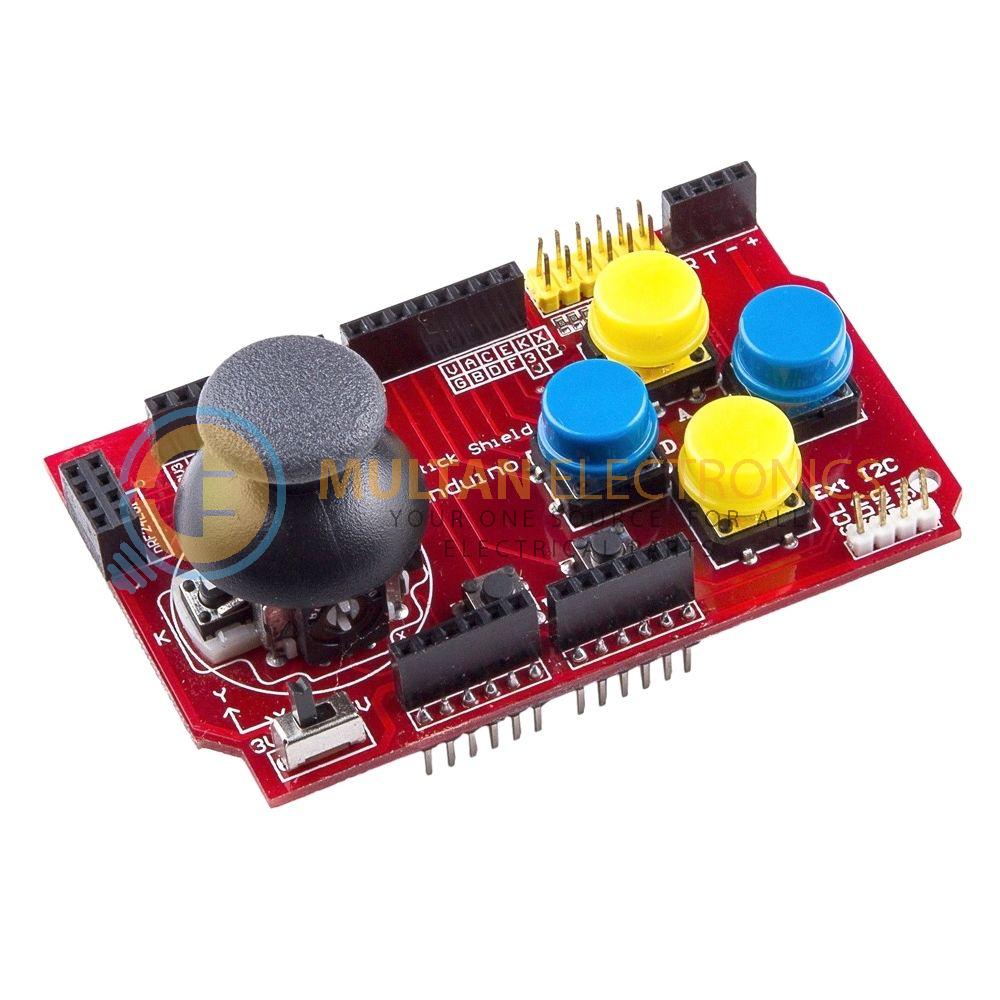

Meanwhile, JoyStick Shield with a cross PS2 joystick with buttons, there are four round buttons, 2 small buttons. Provides for the Arduino joystick and buttons input expansion. Onboard switches can switch between 3.3V and 5V, can use this model for other 3.3V microcontroller platforms, such as STM32.
Size:8.7 x 5.5cm
1 x Gamepads JoyStick Keypad Shield PS2 for Arduino nRF24L01 Nokia 5110 LCD I2C S
