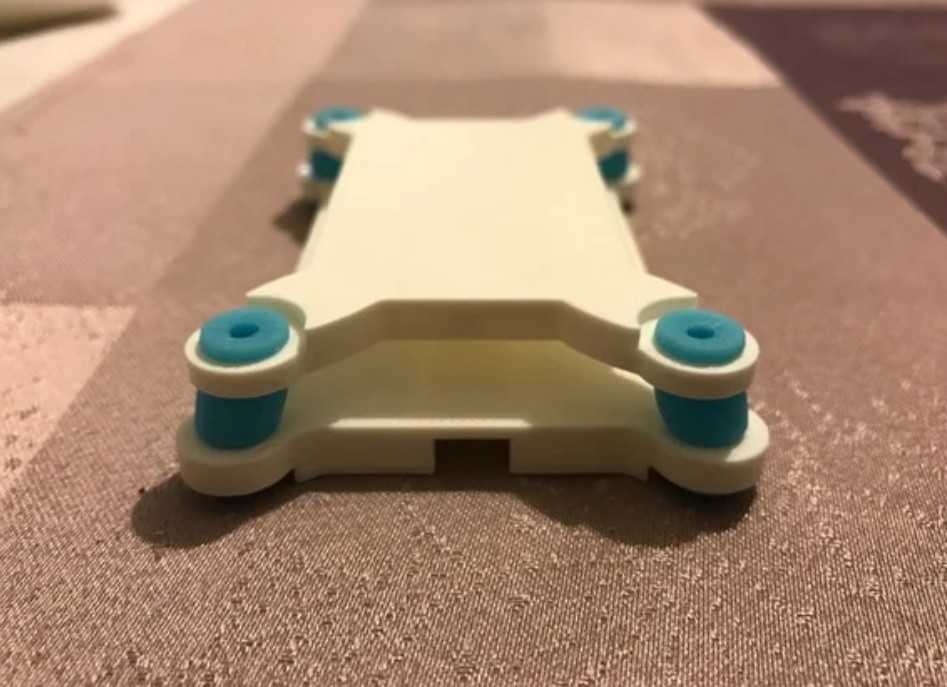

Anti Vibration Mount for a Pixhawk & pixhawk



This is universal Glass Fiber Flight Controller Anti-vibration Set Shock Absorber APM/KK/MWC/PixHawk vibration damping mount has a list of useful applications, This provides the free camera mounting to Flight controller isolation.

The standard fiberglass mount was not satisfactory because the grommets were not even with the surface. I’ve used the standard grommets to stick them together.
Edit: Today I shrink the upper plate because it was touching the inner canopy.

What is anti vibration mounts?
THESE are made of rubber or a combination of rubber and other materials. The advantage to combining rubber with say, steel, is that it enables easy mounting and provides a durable solution to effective  absorption. They’re fastened to your machine and can be used for compression.

It absorbs vibration, the center supported plate is ideal for sensitive electronics and cameras. The flush flat-bottom mounting allows bolt or tape style attachment.

Anti-vibration Set Shock Absorber The rectangle mount can be used on a number of Flight controllers, such as APM Pixhawk as well as the Mobius camera or even a GoPro turned sideways. And comes with some additional mounting tape.

Suit for different open source flight controller, like APM 2.5/2.6/2.8, KK, MWC, and Pixhawk 2.4 etc.

Pixhawk Flight Controller PX4 2.4.8 for fpv And Quadcopter in Pakistan
