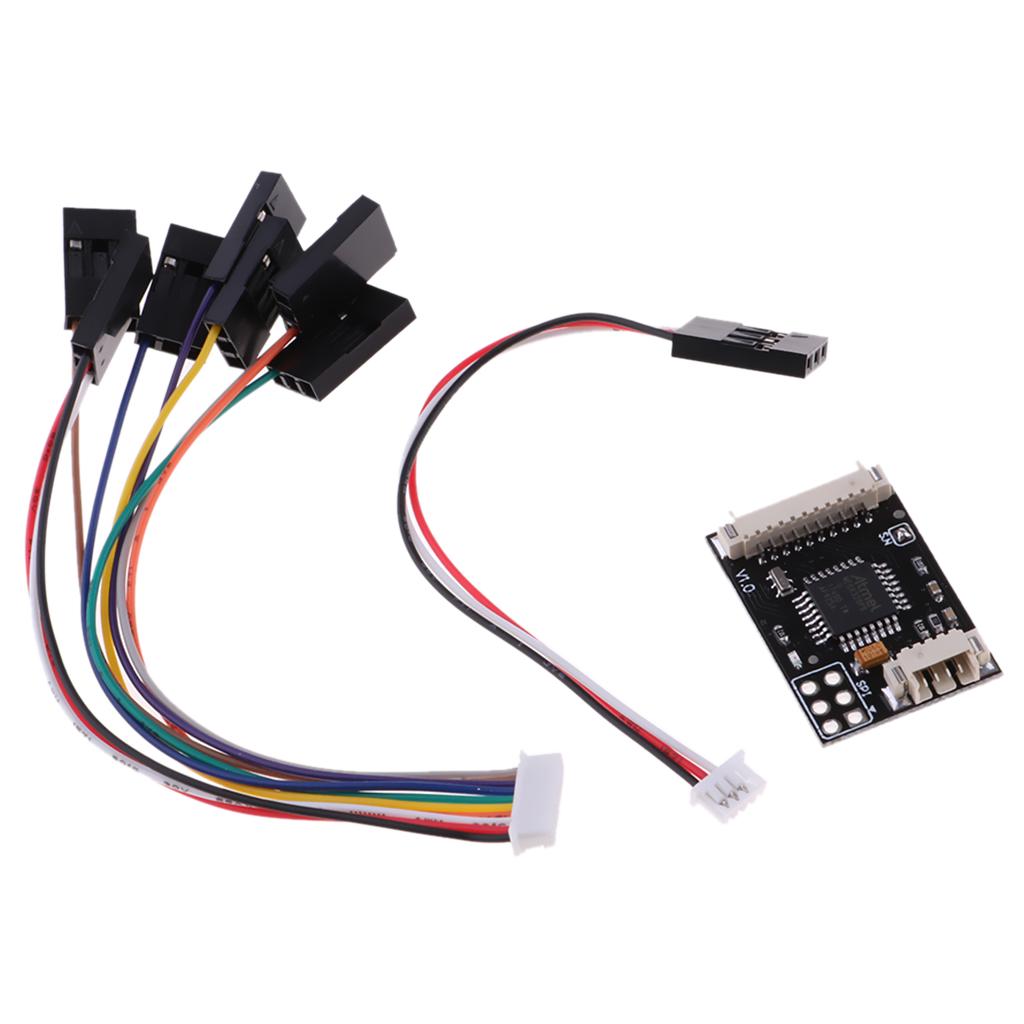

PWM to PPM Encoder for Pixhawk CC3D MWC Naze32 F3 F4 F7 Flight Control etc.
PPM encoder is the role of the receiver output of multiple channel PWM signal encoded into PPM composite signal output, single-wire connection to support the flight control.
Many fly control In order to save port resources or layout constraints, only allow to connect PPM signal, which requires PPM encoder.
Some of the receiver products on the market can directly output PPM signals, is the same meaning, such as Graupner.
PPM signals can also be used for direct connection to simulator dogs for wireless simulation training.
PPM signal and S.BUS XBUS similar, are single-line transmission of all channel signals, but several different coding methods, and can not be compatible with each other.
This PPM encoder hardware prototype comes from the PPZ PPM encoder, the default firmware for the development of 3DR, if you want to modify the function, please own ISP type programmer.
Power supply option, The default power supply, PPM encoder by the flight control power supply, while the receiver can also be powered by the PPM encoder Please note:
If you need to modify the firmware, please do not change any of the fuses. We do not provide any technical Item
PWM to PPM Encoder for Pixhawk CC3D MWC Naze32 F3 Flight Control
