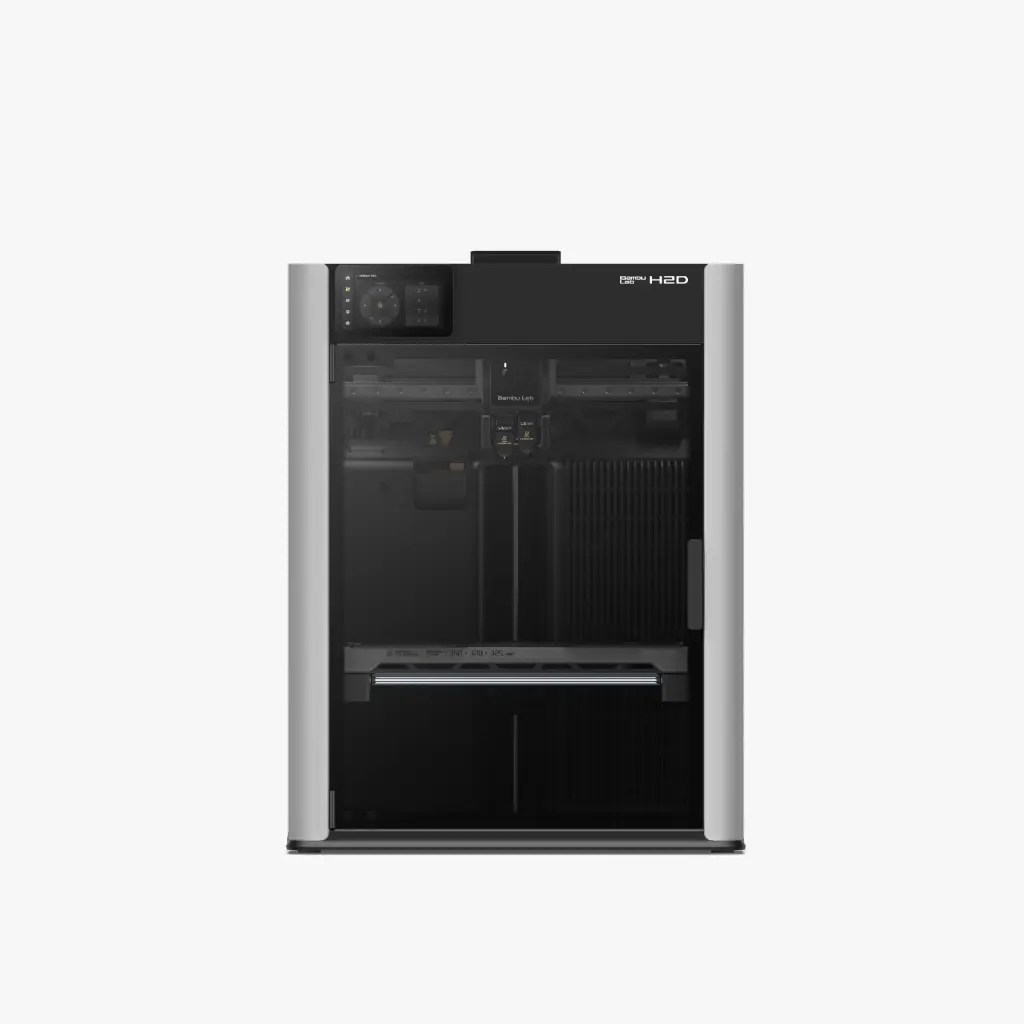

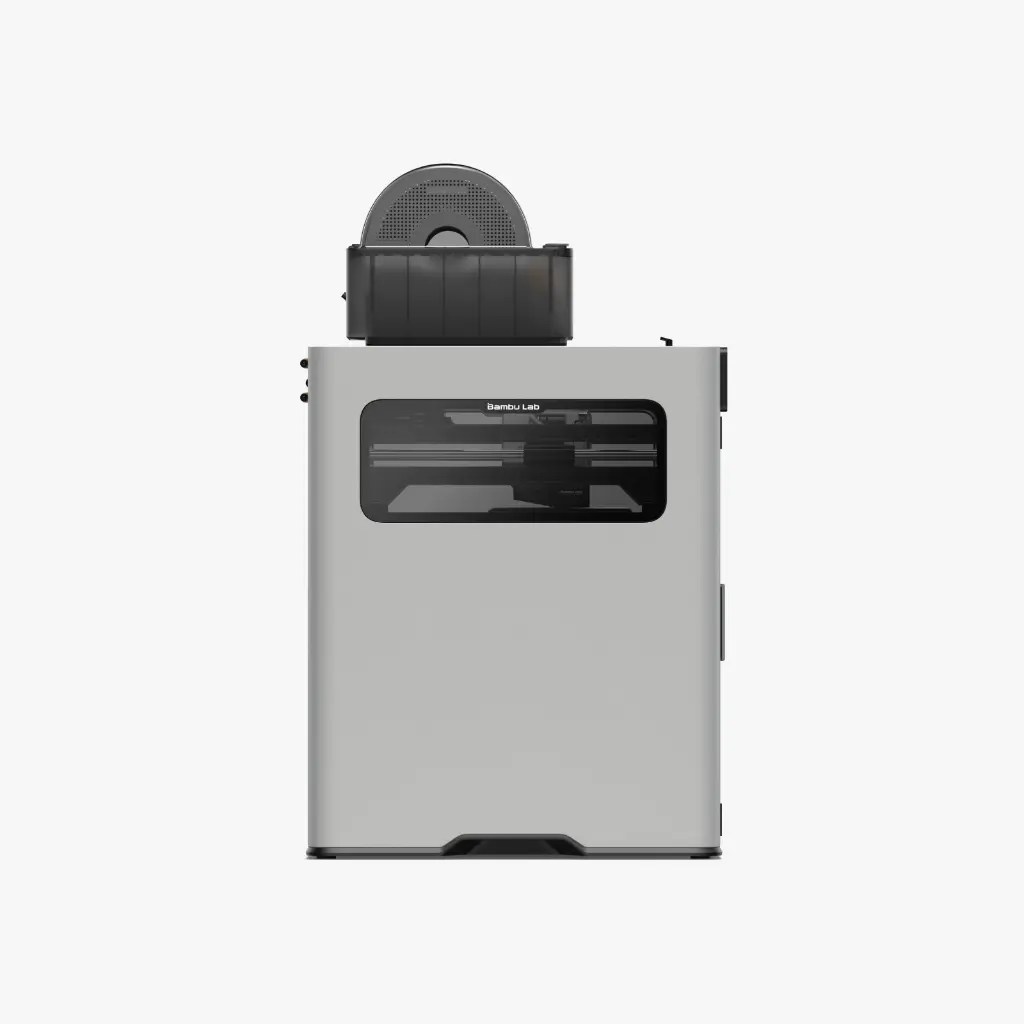

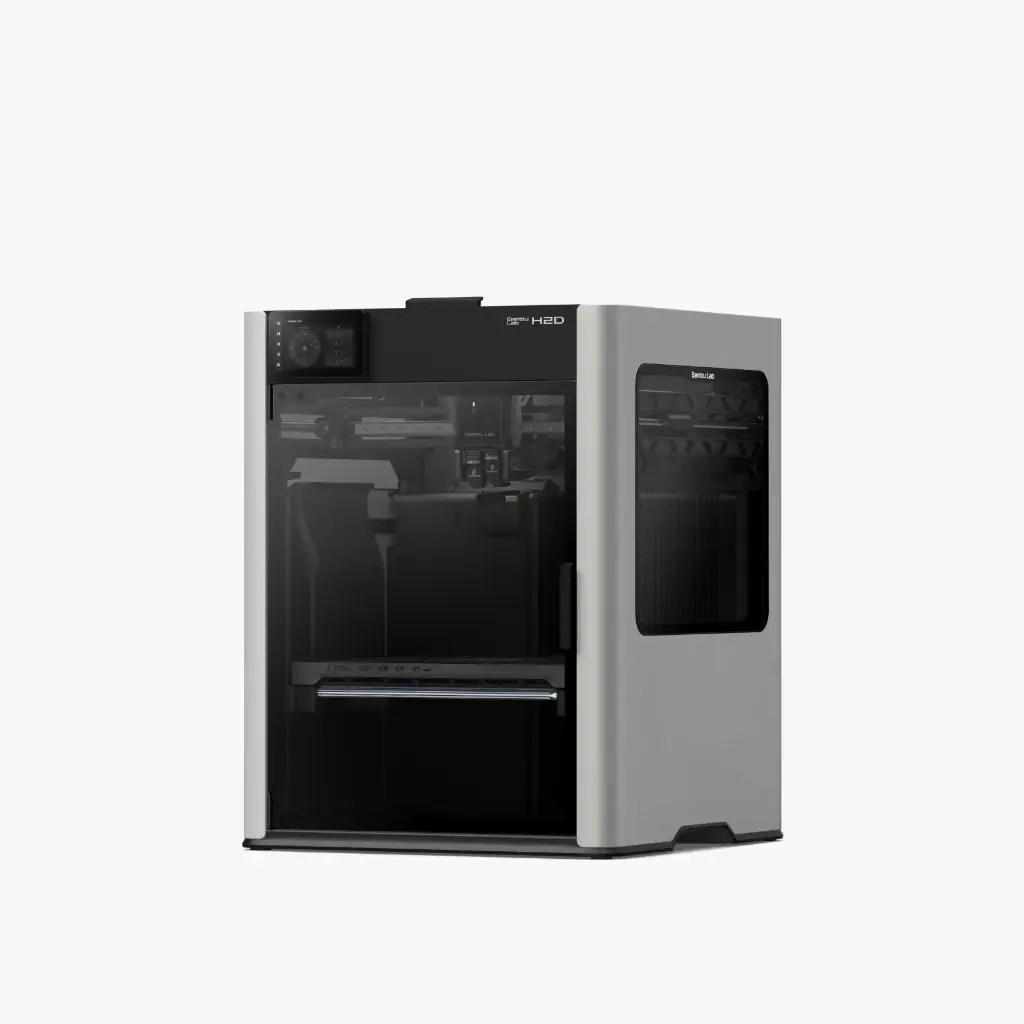

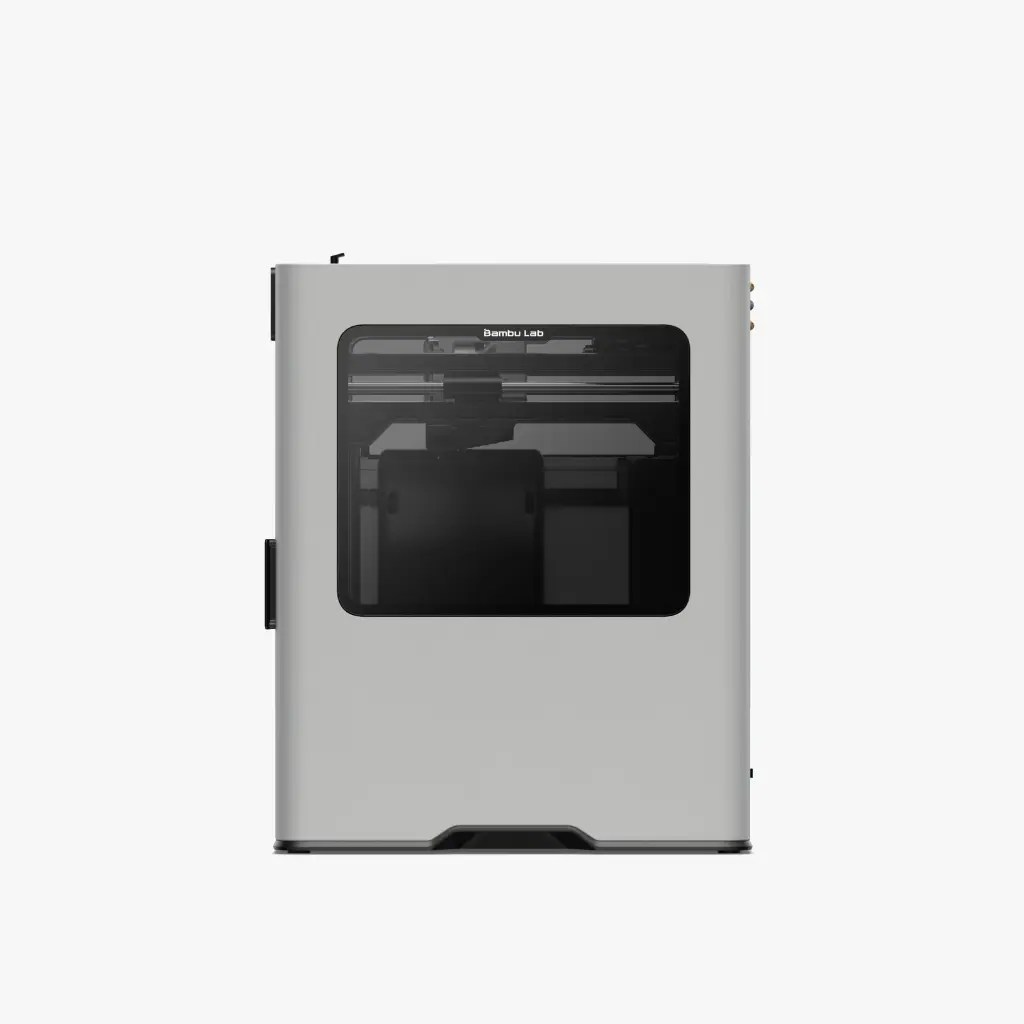

Bambu Lab H2D 3D Printer

Bambu Lab H2D 3D Printer
Bambu Lab H2D 3D Printer is an All-in-one personal manufacturing hub combines professional-grade 3D printing, laser engraving, cutting, and plotting in a single compact system. Bambu Lab H2D is not a conventional 3D printer with added accessories. It’s an entirely new category of product, built from the ground up to deliver exceptional performance across every function. Unlike typical all-in-one products that compromise quality for versatility, H2D excels at each capability it offers, making it the most versatile and powerful personal manufacturing system ever created.

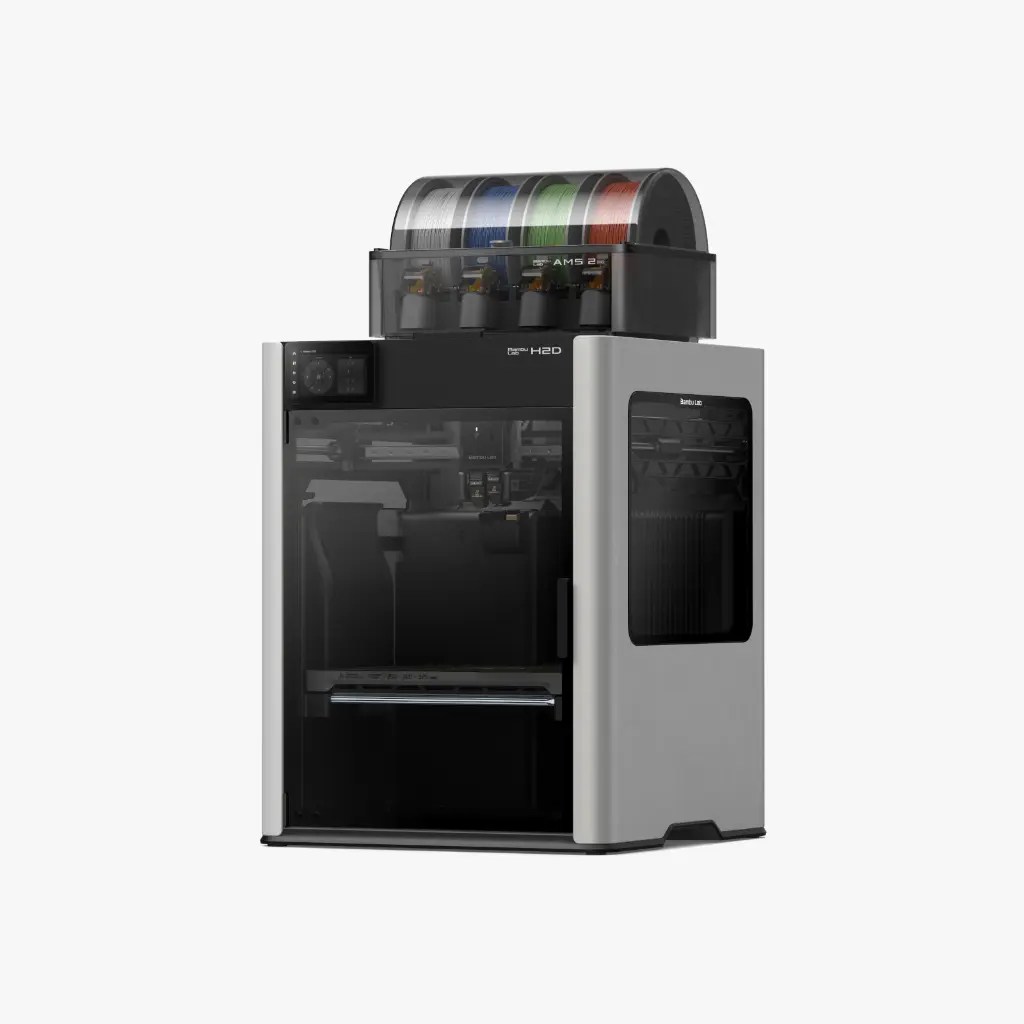

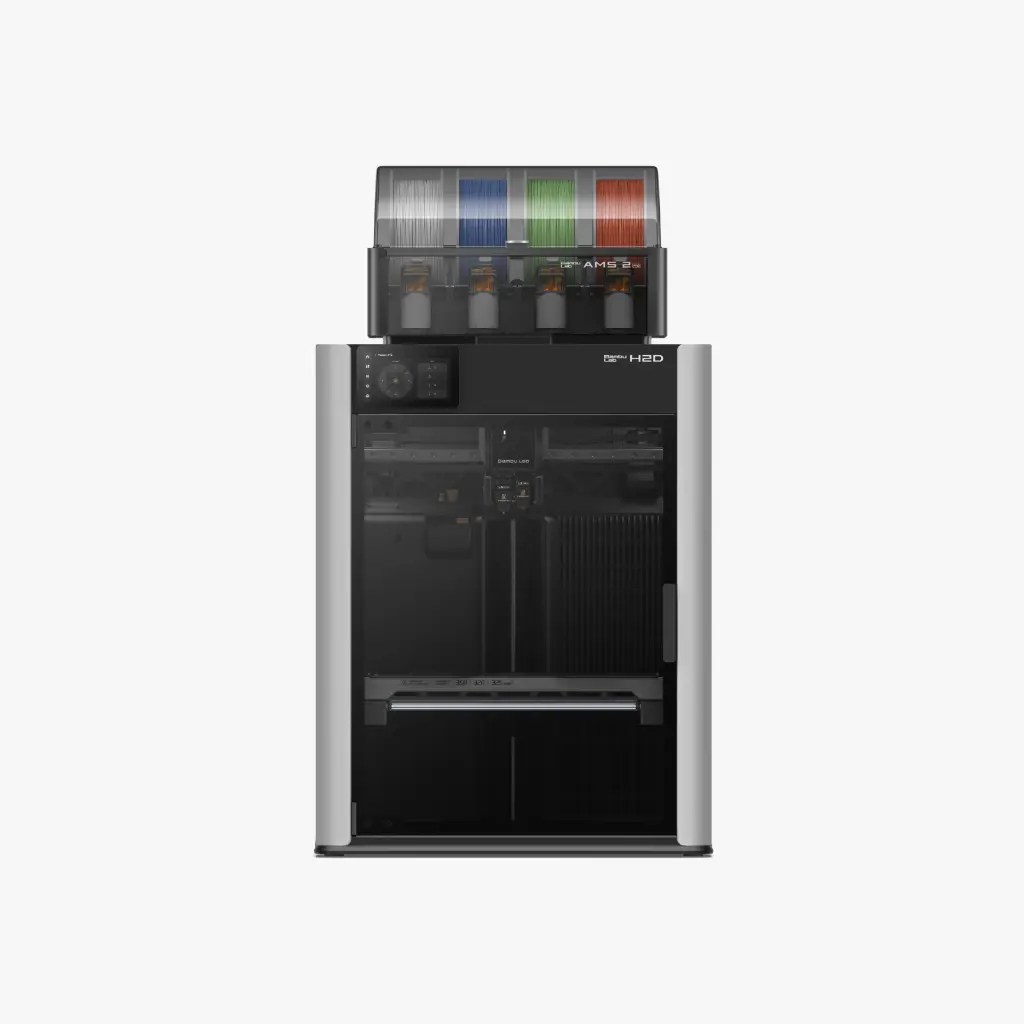

Bambu Lab H2D has redesigned Automatic Material System (AMS), now available in two specialized versions. AMS 2 Pro features a drying function and innovative electromagnetic vents that automatically switch between drying mode and storage mode. AMS HT, designed specifically for engineering filaments, can dry filament up to 85°C.

Bambu Lab H2D 3D Printer includes:
Dual-nozzle Multi-material 3D Printing
Optional 10W/40W Laser and Cutting Module
350*320*325 mm³ Print Volume
5μm Resolution Optical Motion Calibration
Closed-loop Servo Extruder
350°C Nozzle & 65°C Active Chamber Heating

Bambu Lab H2D
Rethink Personal Manufacturing
Bambu Lab H2D 3D Printer
Dual-Nozzle, Double Flexibility
Fast and efficient multi-material printing!

All-In-One Personal Manufacturing Hub
Integrated 3D printing, laser, all in a unified platform.

Revolutionizing Accuracy
One order of magnitude higher motion accuracy.

AI-Powered Simplicity
4 computer vision cameras*, 36 sensors, 2 servo motors

Next-Gen Filament Management
Drying, feeding and storage in a single package.

Personal Manufacturing Hub
H2D is not only a 3D printer, it adds laser engraving and cutting, digital cutting and plotting to your studio, unlocking new creative possibilities.

Bambu Lab H2D 3D Printer
Laser
10W and 40W 455nm Laser for engraving & cutting

.

Bambu Lab H2D 3D Printer
Pen Drawing
Drawing and writing

Bambu Lab H2D 3D Printer
Digital Cutting
Precise cutting on variety of materials



Two Nozzles That Print Like One

Smooth surfaces, sharp edges
H2D precisely controls extrusion by measuring nozzle pressure and calibrating PA parameters for each filament, improving surface smoothness and edge sharpness.

Silky smooth at lightning speed
To minimize banding artifacts during high-speed printing, H2D employs automatic vibration compensation. Using toolhead sensors, the system recalibrates parameters smooth and stable results.

Isolate unwanted vibration for better print quality
The H2D employs floating damper feet with a precisely tuned resonance frequency to effectively decouple the machine from desktop vibrations.

Don”t Worry About Safety! We Have Got You Covered!
Bambu Lab H2D 3D Printer
Laser Safety Windows
Operate and monitor laser projects safely without the need for goggles.

Bambu Lab H2D 3D Printer
Air Purifier
An optional air purifier ensures clean air, even during indoor laser operations.*

Bambu Lab H2D 3D Printer
Air Assist
Improve surface quality by directing high-speed air to cool the laser path, ensuring cleaner and more precise results

Bye-Bye To Manual Laser Focusing & Thickness Settings

Full-Auto Calibration
A single tap initiates automated laser focus verification and material measurement, eliminating manual adjustments

Material CodeSync
The H2D automatically scans the QR code on your material to load the perfect preset.

Auto Arrangement
Leveraging real-time images from the BirdsEye camera, Bambu Suite can automatically arrange your project according to the shape of your material, i.e left over plywood from the previous project.

Go Big, Go Fast, Go Precise

Unleash the full potential of high-performance materials
Equipped with 65°C active chamber heating and a high-temperature hotend reaching up to 350°C, the H2D delivers precise closed-loop temperature control. This advanced system effectively eliminates warping and deformation in high-performance materials.

Break free from size constraints
With a print volume up to 350mm×320mm×325mm*, creating large-scale projects has never been easier! From laser engraving on sizable objects to printing oversized models, the expanded capacity empowers you to bring even your most ambitious ideas to life.

Consistently print at 600mm/s
The H2D’s purpose-built high-flow hotend ensures reliable, high-speed printing at 600mm/s. Designed for consistent performance, it eliminates mid-print flowrate restrictions, enabling uninterrupted high-speed printing regardless of the print size or complexity.

A Smarter, Safer Experience

Intelligent sensing for precise extrusion control
Bambu Lab’s proprietary PMSM servo architecture establishes an intelligent extrusion governance system. It executes 20kHz Torque/Resistance and position sampling to dynamically modulate electromagnetic torque vectors. Stabilizing extrusion and detecting filament grinding and clogging.

Monitor extrusion at the nozzle tip
The H2D features an AI-backed nozzle camera with macro lens. This intelligent monitoring system continuously tracks extrusion patterns, immediately detecting material accumulation, filament deviations, and extrusion failures.

15 sensors on one filament path
Unlike legacy systems with single filament run-out detectors, the H2D features comprehensive material flow monitoring. Throughout the AMS-to-nozzle path, 15 strategic sensors form an intelligent network, continuously tracking five key parameters: feeding velocity, tension, filament tip location, extruder thermal environment, and dynamic extrusion pressure.

Dry Filament Quickly and Intelligently

Electro-Magnetic Air Vent
Automated venting facilitates dehumidification during drying and airtight sealing for weeks of quality printing.

Auto-Rotate Drying
During the drying process, the filament spools rotate automatically to provide more even drying.

RFID Sync
AMS 2 Pro uses RFID to auto-match drying settings for Bambu official filaments, no manual input needed.

Bambu Lab H2D 3D Printer
Product Parameters
Technical Specifications
Printing Technology Fused Deposition Modeling
Build Volume Single Nozzle Printing: 325*320*325 mm³

Dual Nozzle Printing: 300*320*325 mm³

Total Volume for Two Nozzles: 350*320*325 mm³
Chassis & Shell Aluminum, Steel, Plastic and Glass
Laser Safety Windows Equipped on Laser Edition, normal H2D can upgrade through Laser Upgrade Kit
Air Assist Pump Equipped on Laser Edition, normal H2D can upgrade through Laser Upgrade Kit
Physical Dimensions 492*514*626 mm³
Net Weight 31 kg
Toolhead All Metal Hotend
Extruder Gear Hardened Steel
Nozzle Hardened Steel
Max Nozzle Temperature 350 °C
Included Nozzle Diameter 0.4 mm
Supported Nozzle Diameter 0.2 mm, 0.4 mm, 0.6 mm, 0.8 mm
Filament Diameter 1.75 mm
Extruder Motor Bambu Lab High-precision Permanent Magnet Synchronous Motor
