This store is a cost-effective, multi-functional tracking module for the friends who want to make a tracking robot. This module is enough for daily tracking tasks, and also has an infrared distance detecting sensor and a touch detecting sensor. Make your robots adapt to more situations.

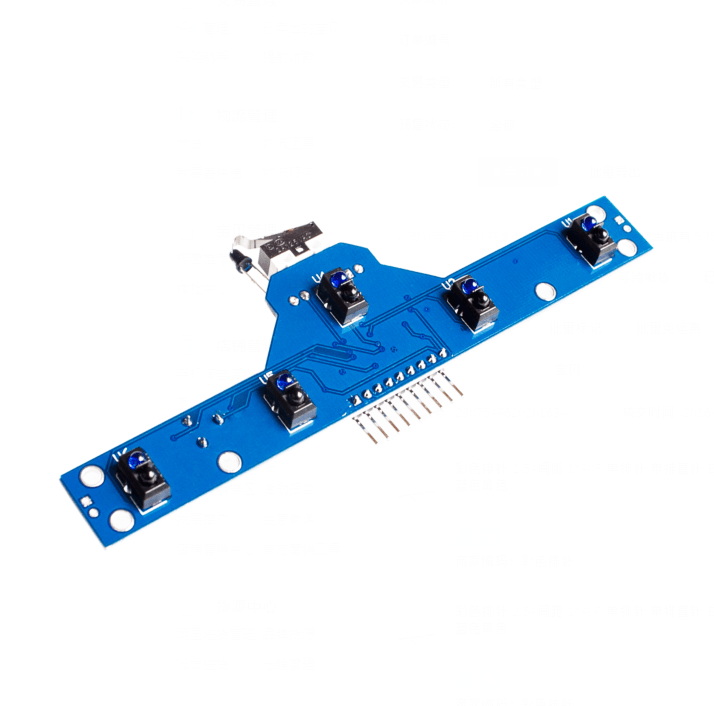

The BFD-1000 is specially designed for black (white) line search. It is especially suitable for the detection of complex black and white lines and cross black and white lines. It has 6 high-sensitivity infrared sensors (5-way inspection line, 1 way barrier). It can accurately identify black and white lines, and it has the following functions and features:
1. Integrated 5-channel high-sensitivity tracking sensor, which has little impact on the environment, can accurately track complex black lines (white lines), and is more convenient for simple black line tracking. The black output is low and the white line is output high.
2. Integrated one-way infrared obstacle avoidance sensor, the obstacle avoidance distance can be adjusted by adjustable varistor (0-10CM), and output high level when there is obstacle.
3. Integrate a specially designed touch detection sensor to make the design of the shuttle robot easier.
4. The output of this module is all high and low level signals, which is convenient to connect with the single chip microcomputer.
5. All sensor output states have LED lights as an indication for easy debugging.
6. Operating voltage is 3.0-5.5v to meet most system requirements.
Reason for selection:
1. The module integrates 7 sensors reasonably and is cost-effective.
2. Reasonable layout of the sensor on a module, no need for more DuPont lines when connecting, so that your design is simple and generous, reducing the probability of wrong errors, and finding errors more quickly when troubleshooting errors, saving time and effort .
3. Excellent after-sales service, to ensure that you can use the module correctly, excellent routines ensure that you can use the module to make the works you need.
Input voltage: 3.0-5.5V
Tracking distance: 0-3 cm (black and white line sensor)
Barrier distance: 0-6 cm (distance detection adjustable)
Output form: high and low level signal
