40W Fixed Focus Laser Fixed Focus Laser Head 450nm Metal Wood Acrylic Laser Engraving Specs:
▶Built-in dual laser tubes, FAC design, high efficiency and stability.

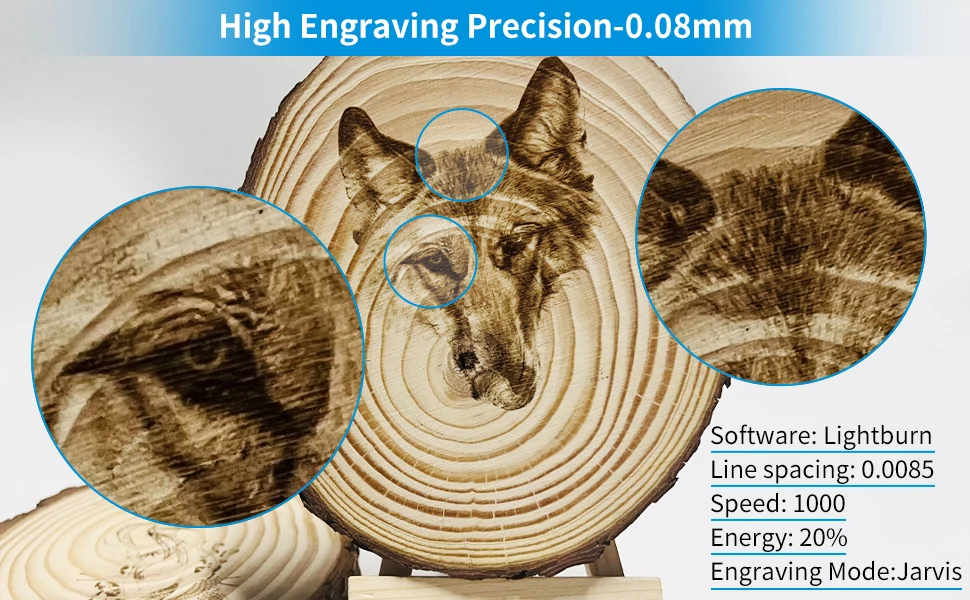

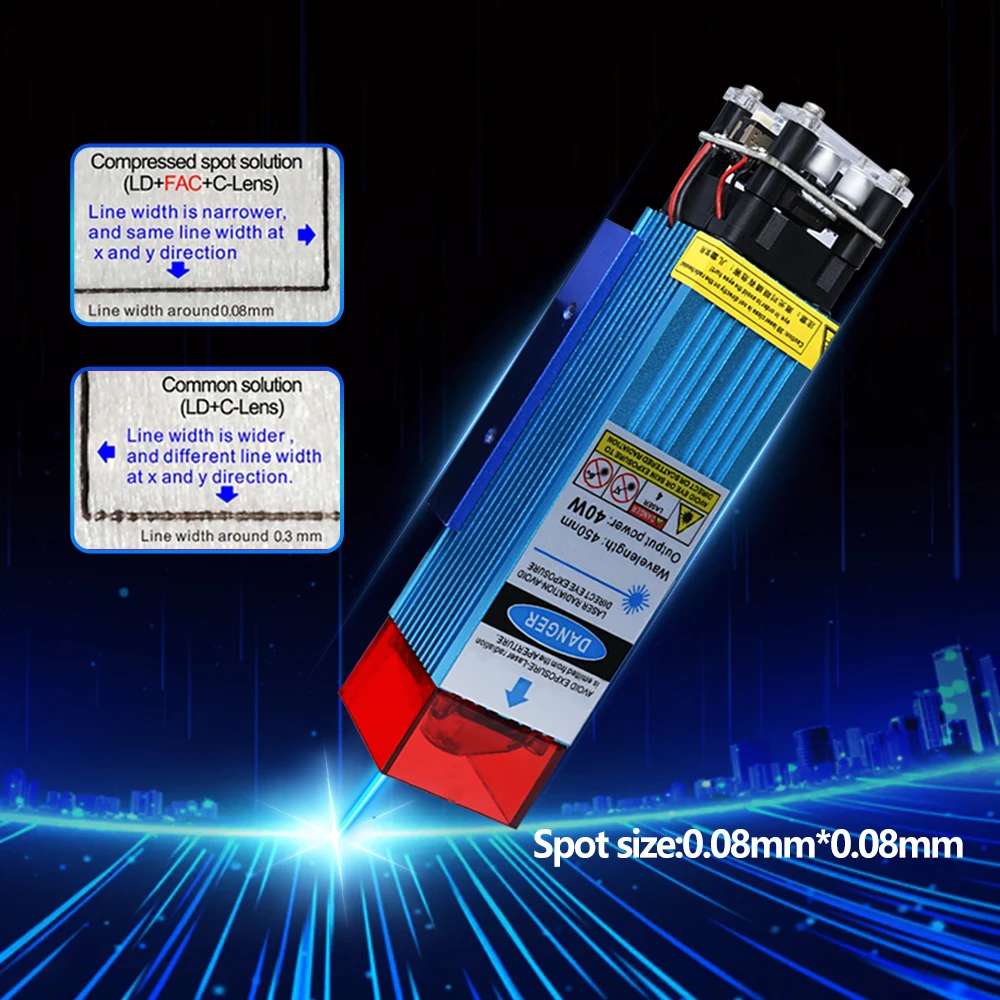

▶0.08mm engraving accuracy, thinner than line.

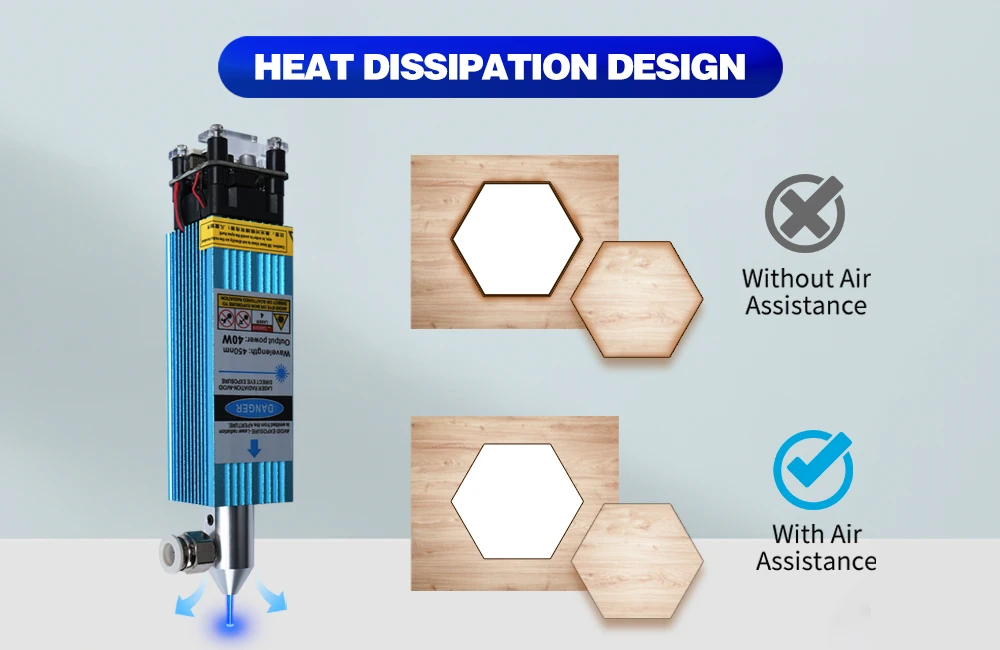

▶Built-in heat dissipation and intelligent temperature adjustment system to ensure continuous long-term work with low noise.

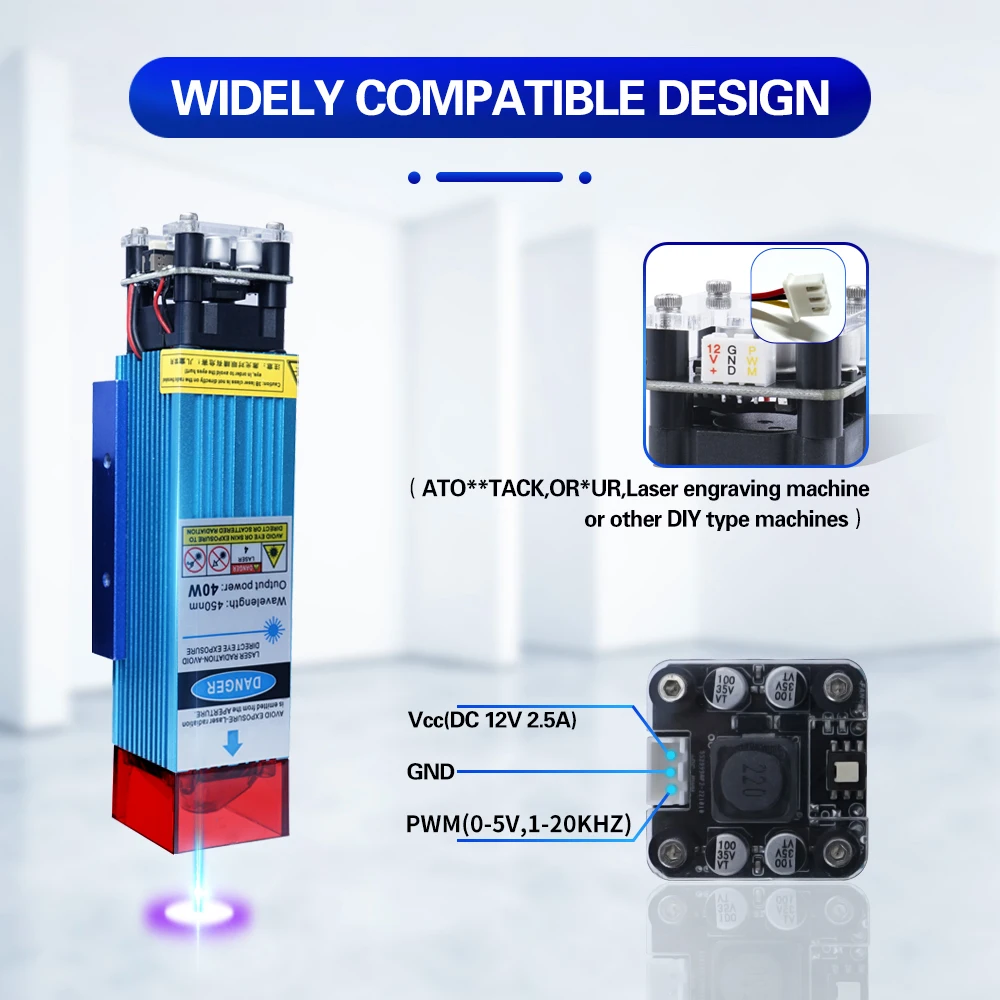

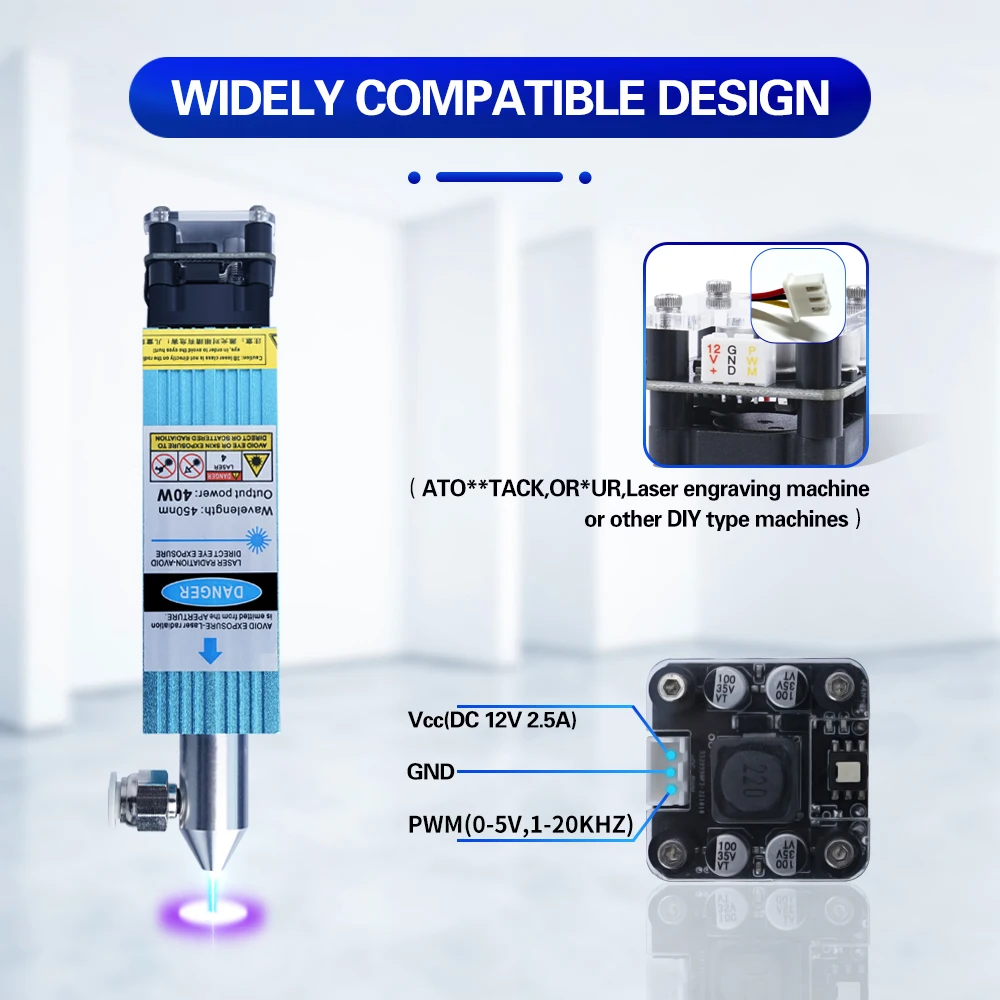

▶The laser module can be used in 95% of cutting machines, CNC engraving machines and DIY laser engraving machines on the market.
▶It supports various materials such as wood/MDF/leather/bamboo/plastic/paper to realize your DIY freedom and bring you endless fun. ️

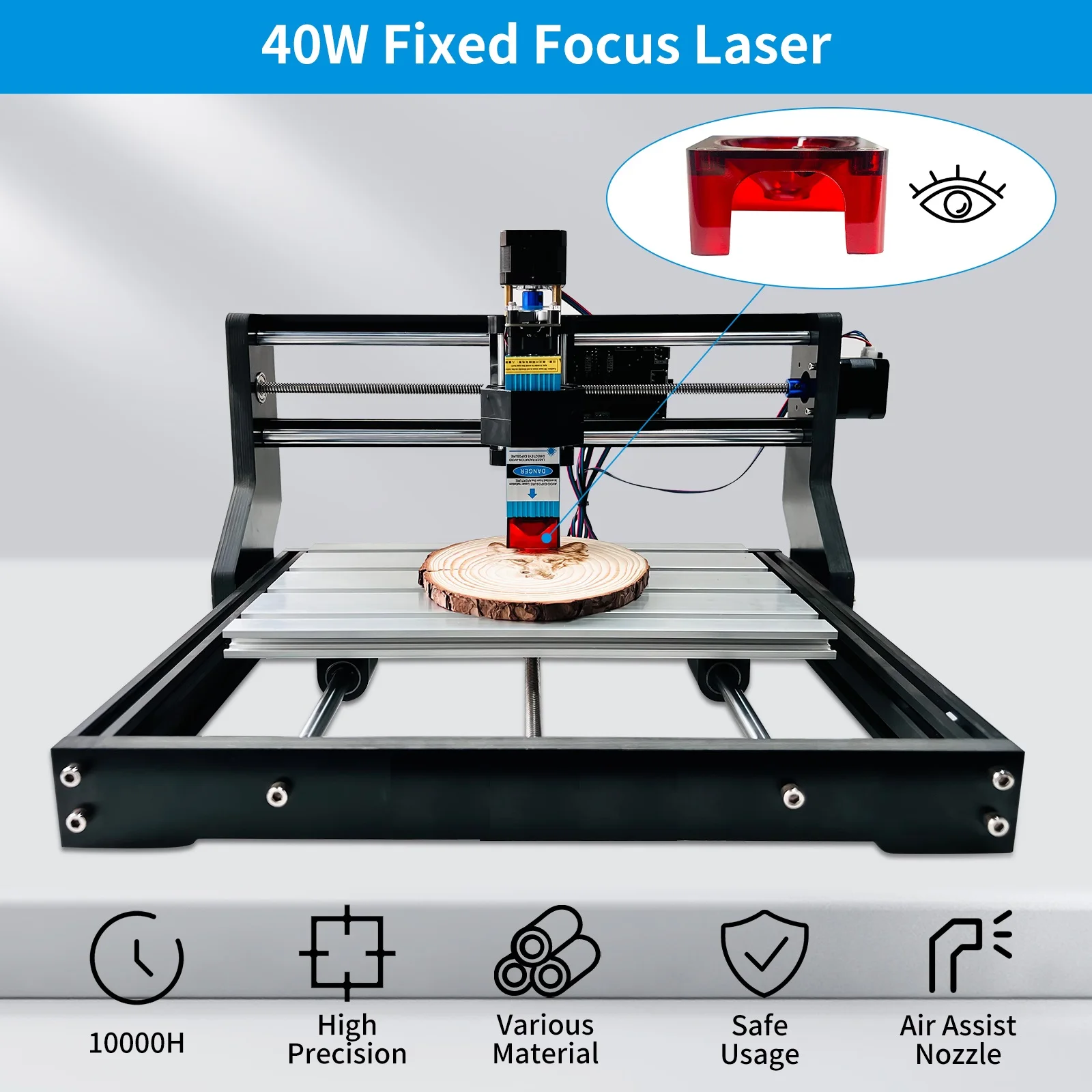

▶Designed with a magnetic protective case, it perfectly protects your eyes. Enjoy the engraving process without additional goggles, more comfortable and convenient. Fixed focus design makes it easier to use.
Parameter of 40W Fixed Focus Laser Fixed Focus Laser Head 450nm Metal Wood Acrylic Laser Engraving：
▶Module name：40W

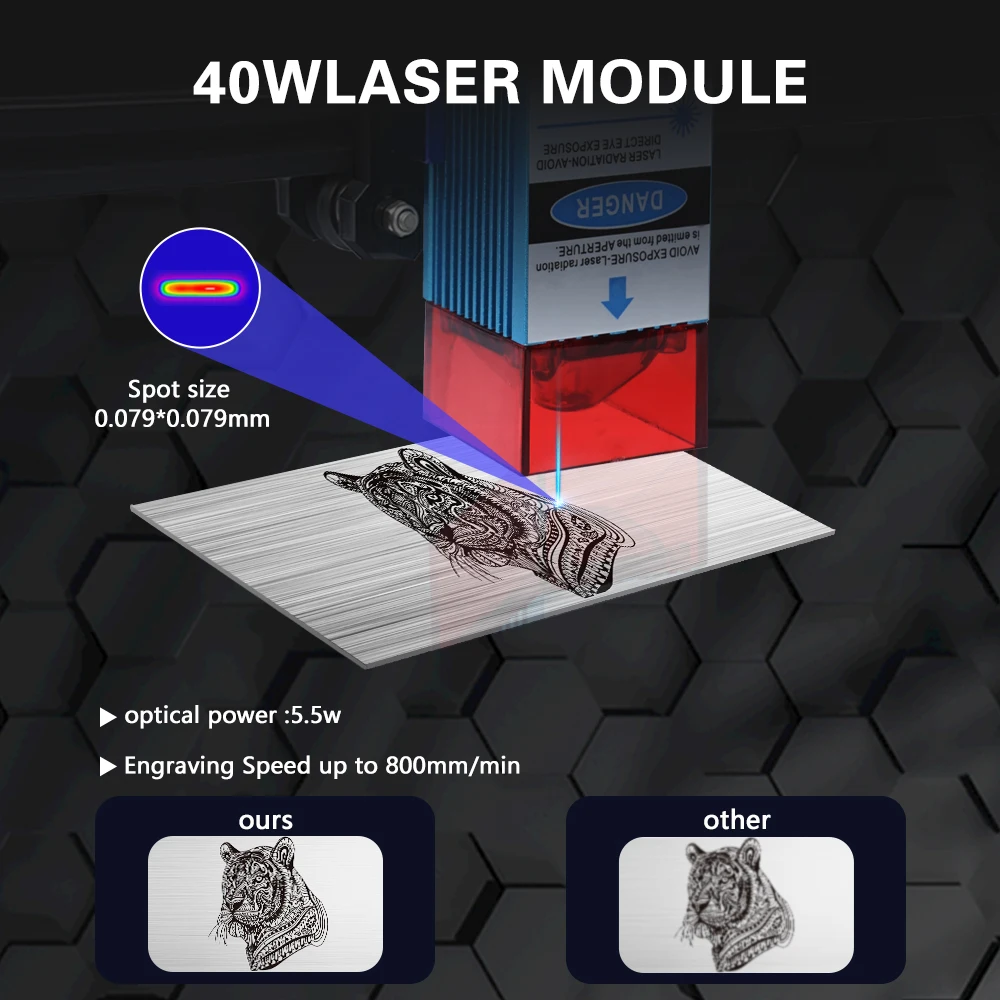

▶Optical power output：5.5W
▶Wavelength：450nm
▶Beam Shape：Dot(fixed focues)
▶Working Voltage：DC 12V/24V
▶TTL&PWM Modulation：YES, Compatible with Both TTL & PWM Modulation
▶Input Voltage：DC12V 3-4A
▶PWM/TTL Input：DC 0-5/12V

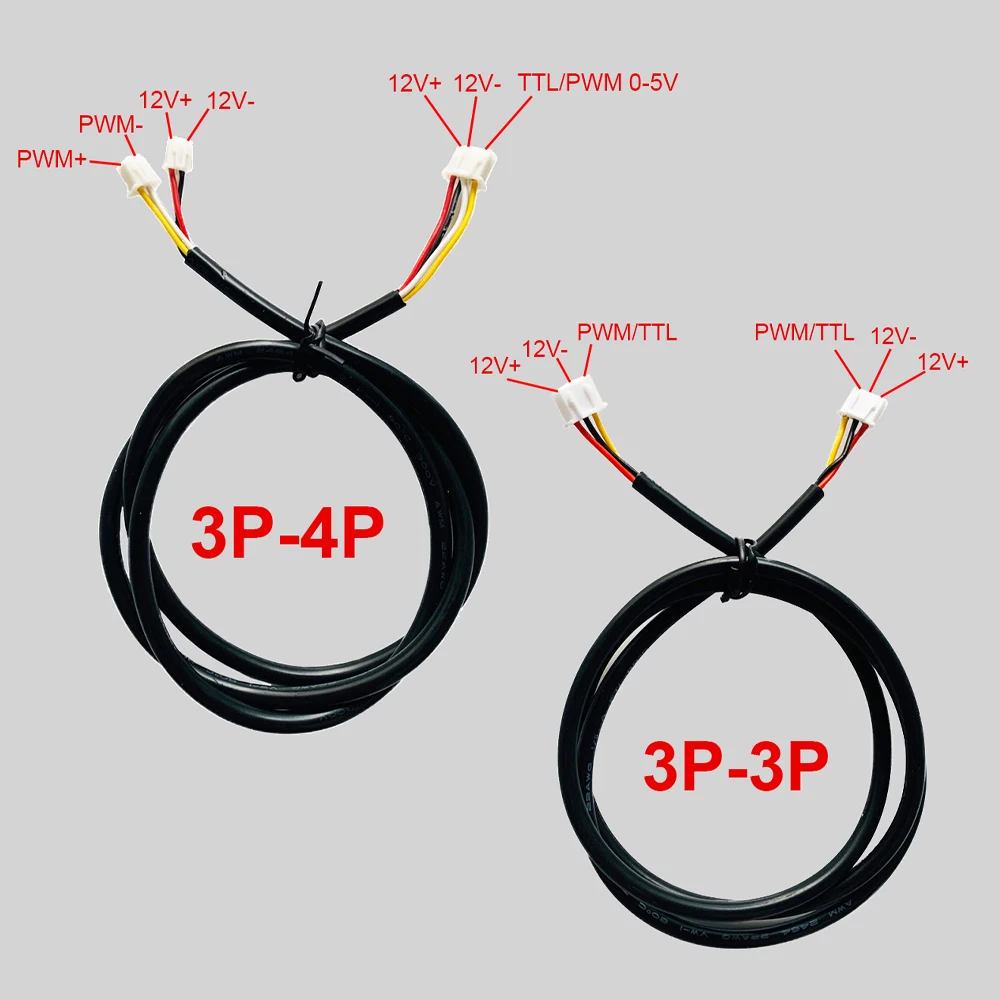

▶Input Interface：3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)
▶Safe temperature range：<60 ℃
▶Module weight：202g ( The lighter the weight, the smaller the move inertia, the better the performance )
▶Life Time：10000-20,000 hours
▶Heatsink Material：Aircraft Aluminum +Blue Shell
▶Luminous Color：Blue
▶Cooling Mode：Temperature sensor intelligent control + 10000 rpm 40mm cooling fan

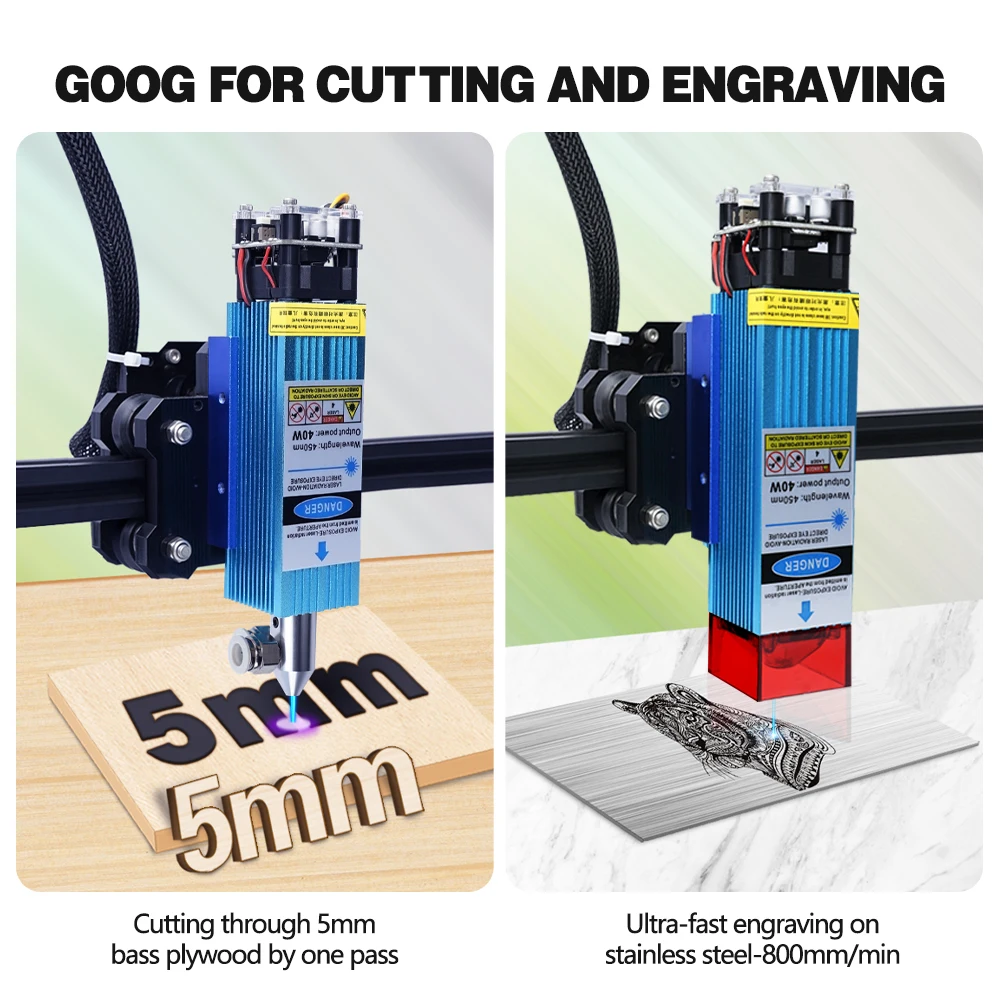

When cutting, it is recommended to use it with an air pump and a nozzle to achieve better engraving results. If cutting without an air pump, it is recommended to remove the nozzle and use the protective case.
*The above test data is 100-200mm/min, 100% power, Pine or basswood planks. Need to match air pump and honeycomb panel. The specific results will vary depending on the density and material of the plank.
