Description

Advantage 1:

80W Laser Module 450nm Blue Laser Head 80W Laser Engraving Head Air assist system: When performing laser cutting jobs, an air assist system blows air through the air nozzle, enhancing the cutting performance and reducing the burn marks. You can remove the air assist nozzle when you are doing non-cutter jobs.This laser kit only comes with an air assist nozzle, to make full use of the air assist feature, you may need to prepare an air assist pump and air tubing yourself.

Advantage 2:

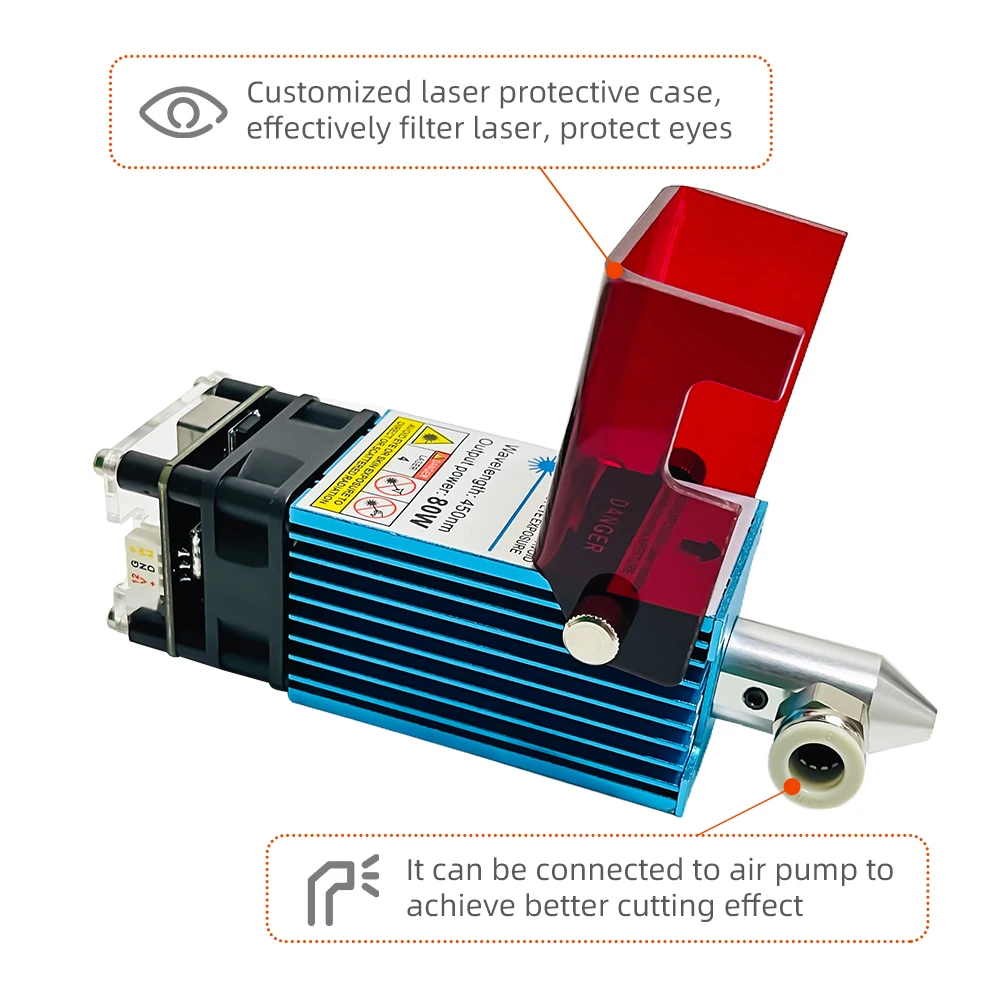

Laser protective cover: It can effectively filter blue light and can work without wearing goggles.

● [Main performance]

a.Directly engrave mirror stainless steel: no need painting black;

b. Super fast engraving speed: 304 stainless steel, up to 30mm/s with 45mm focus length;

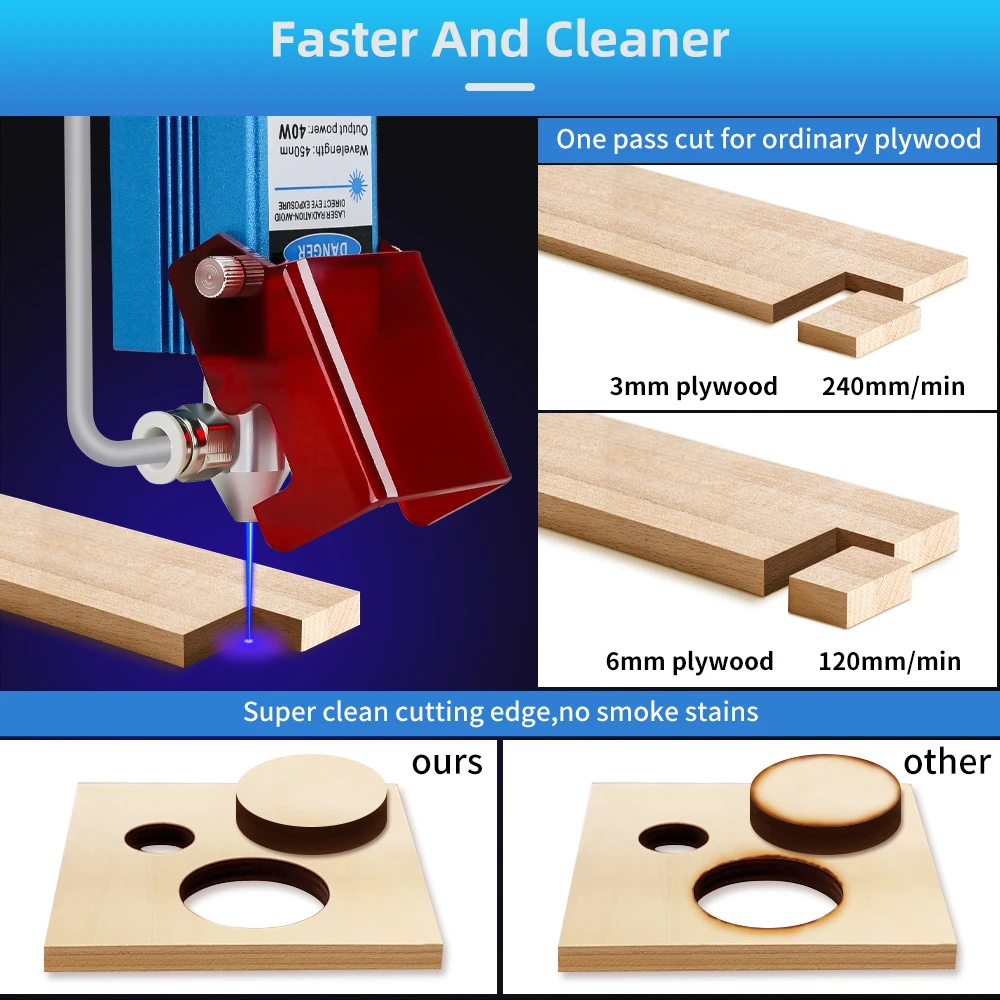

c. Remarkable cutting ability: cutting through 8-10mm thickness plywood by one pass at speed of 1.5mm/s

● [Original diode]

Original diode, high quality,20,000 hours lifetime!

● [Easy to use]

Wavelength: 450nm, Input: DC 12V 3.2A ,Support 5V PWM modulation, Input port: XH2.54-3P socket ,control line installation method: pluggable.Suitable for DIY engraving machine.

● [Applicable materials]

Ceramics,Bone,MDF,Coated glass,Black acrylic,Plywood,Brushed stainless steel, Stone, Bamboo, Leather, Rubber,Alumina,Solid wood, etc.

● [Precautions]

Unable to engrave: blue/purple/white/transparent material, aluminum without oxide layer.

● Laser Type: semiconductor blue light

● Shell Material: aviation aluminum

● Module center material: copper

40W optical power：5.5W

80Woptical power：10W

● Laser Size: 40mm

● Laser Wavelength: 450nm

● Drive mode: External ACC constant current drive

● Power Supply Voltage: 12V

● Power Control: PWM/TTL ( voltage 0-5V)

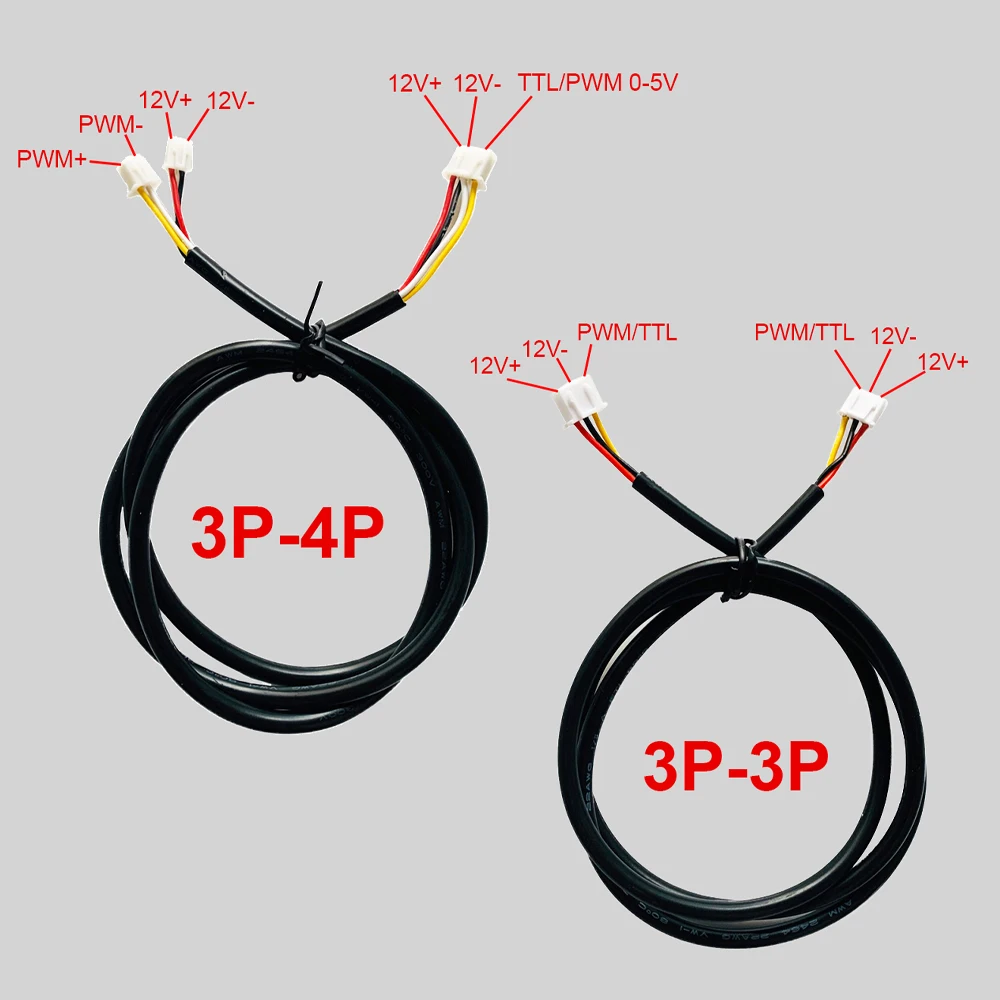

● Cable: 3 pin, Red “+” Black “-” Yellow “PWM”

● Beam Shape: Dot-shaped fixed focus(It comes with a Focusing column 40mm , then when you make the laser work, please confirm the distance from lens to material is 40mm)

● The life span is 20000 hours.(Due to the different engraving materials, the smoke produced by engraving will adhere to the lens. To avoid affecting the engraving effect, it is recommended to use a fan)



Important hint! ! !

1. The red line is the 12V positive pole, the black line is the negative pole, and the yellow line pwm is the positive pole (0-5/12V, 0-20KHZ). If the Pwm of your control board exceeds 5V/12V, it will not be able to control the Pwm adjustment of the laser.

2. Use a laser with a nozzle to cut wood, etc. It is recommended to use it with an air pump to blow away the smoke. After many times of cutting work, the smoke will pollute the lens and affect the engraving effect. Please use alcohol wipes to clean the lens.

3. In the maximum cutting thickness data we show, the wood is pine board/basswood board. The maximum cutting thickness of the laser is affected by the wood density and material.

4. 40w80w is the collective name of laser manufacturers, it does not mean that the input and output power is 40w80w. The specific parameters are displayed on the details page.

We provide high-quality after-sales service, if you have any questions after receiving the goods, you can contact us at any time.

When cutting, it is recommended to use it with an air pump and a nozzle to achieve better engraving results. If cutting without an air pump, it is recommended to remove the nozzle and use the protective case.

40w maximum cutting 15mm pine board.

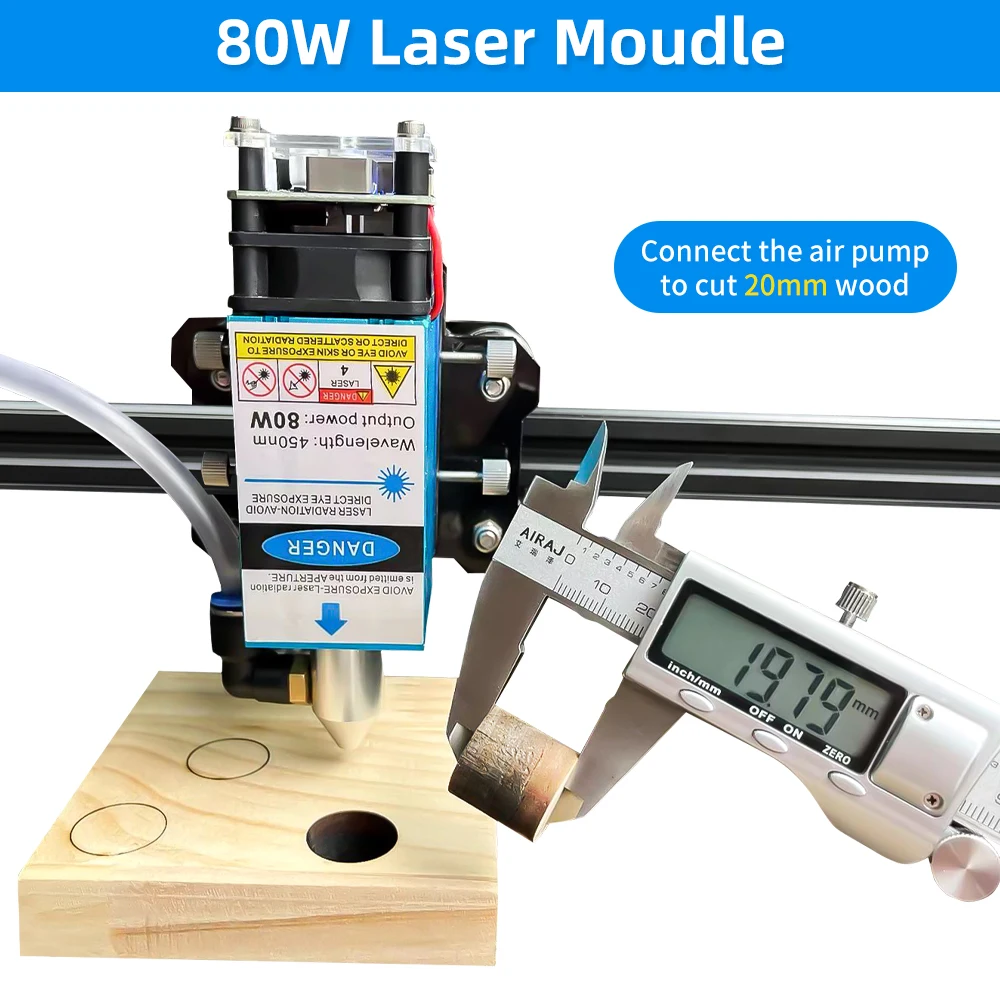

80w maximum cutting 20mm pine board.

*The above test data is 240mm/min, 100% power, 7-8 times multiple cutting. Need to match air pump and honeycomb panel. The specific results will vary depending on the density and material of the plank.
