UT61A Auto-ranging AC/DC Digital Multimeter with Non-contact Voltage Detector

7,200

Specifications for this item
Brand Name Uni-Trend
Ean 6934920395141
Item Weight 10.6 ounces
Model Number UT61A
Part Number UT61A
Power Source Type battery-powered

Description

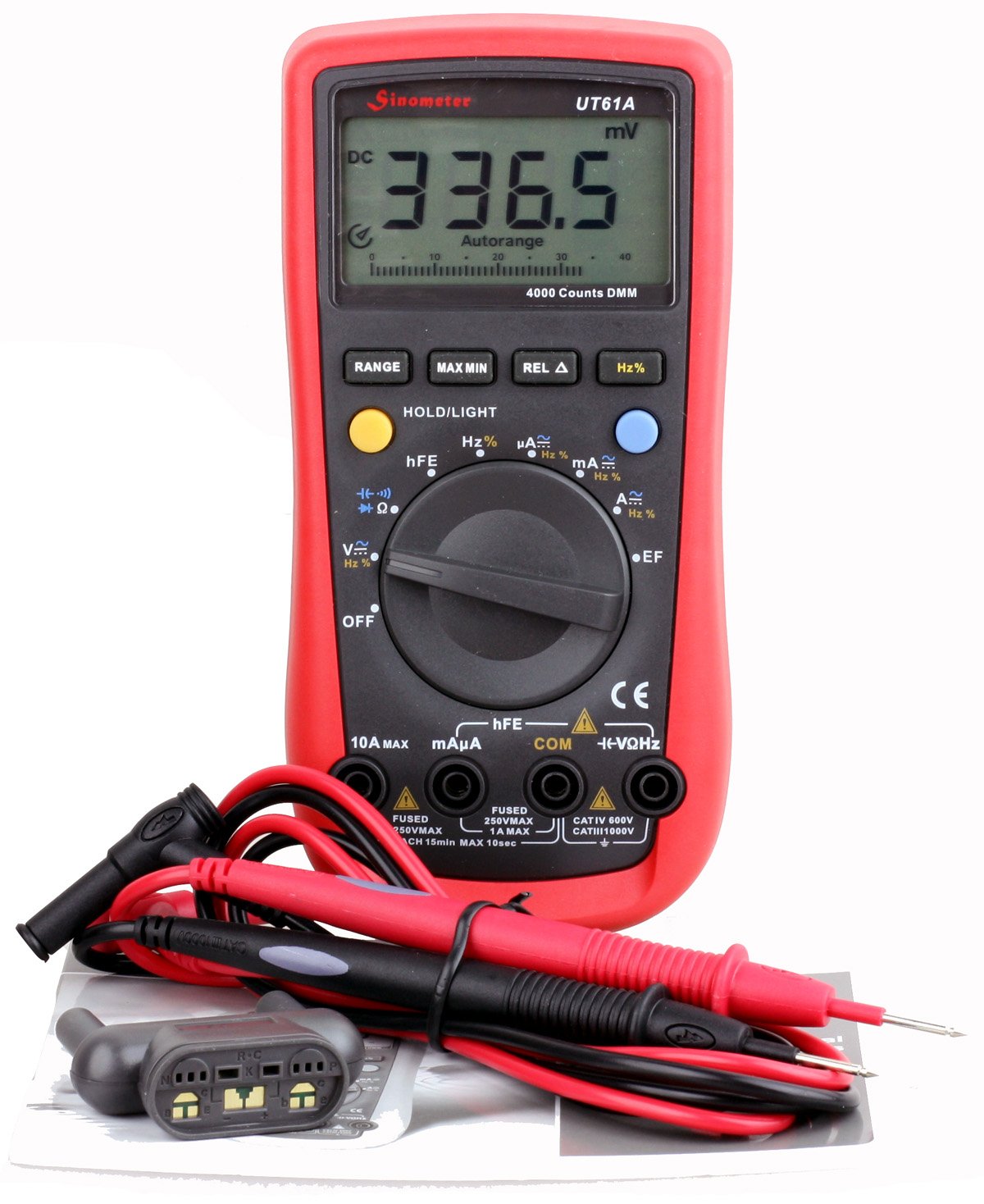

UT61A Auto-ranging AC/DC Digital Multimeter with Non-contact Voltage Detector

This meter is made by Sinometer in China with the latest Technology to guaranty the accuracy and stability. Both AC and DC current measurement goes up to 10A.

Specifications:

Max. LCD display: 3,999
Range selection: Auto
DC voltage: 400mV ± 0.8%, 4/40/400 V ± 0.5%, 1,000 V ± 1.0%
AC voltage: 400mV/4/40/400 ± 1.0%, 750 V ± 1.2%
DC current: 400u/4mA ± 1.0%, 40/400mA ± 1.2%, 4/10 A ± 1.5%
AC current: 400u/4m ± 1.2 %, 40m/400mA ± 1.5 %, 4/10 A ± 2.0%
Resistance: 400ohm ± 1.2%, 4k/40k/400k ± 1.0%,4 Mohm ± 1.2%,40 Mohm ± 1.5%
Capacitance: 40nF/400n/4µF / 40µF ± ± 3.0% , 400µ ± 4.0%, 4mF (unspecified)
Frequency range: 10-10MHz ± 0.1%
Diode test: yes
hFE: Yes
Non-contact voltage detection: Yes
Continuity test: yes
Dimensions 7 x 3 ½ x 1 ¾ inches
Power: 9V 6F22 battery
Weight: 13 oz

Features:

Relative value measurement
Max & Min value
Data hold
Automatic power-off (can be disabled)

What’s in the box:

UT-61A digital multimeter
Test leads
Multi-functional adapter: 1
9V battery: 1 (installed)
User manual

Sinometer UT61A Auto-ranging AC/DC Digital Multimeter with Non-contact Voltage Detector
