Raspberry Pi 4 Case Customize Design

Description

Raspberry Pi 4 Case Bottom

• Base design without ventilation holes
• Hexagonally shaped ventilation holes
• Simple slot shaped ventilation slots

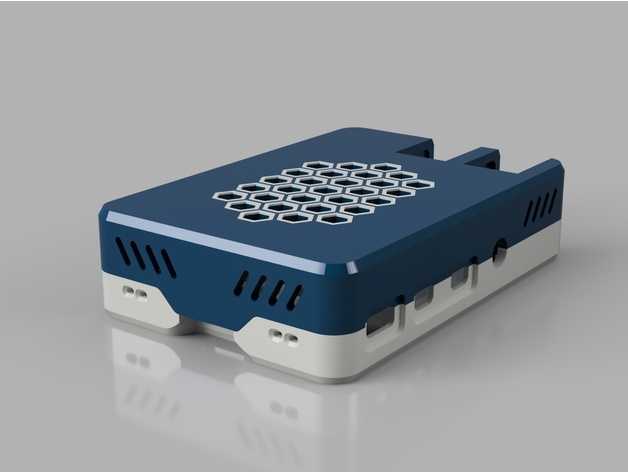

• Hexagonal mesh covering the whole bottom

Top

• Base design without ventilation holes
• Hexagonally shaped ventilation holes
• Raspberry logo as ventilation holes
• Simple slot shaped ventilation slots
• Hexagonal mesh covering the whole bottom

Cooling fans

There are two options to mount a 30mm or 40mm cooling fan:

• Screwless version with rails/sled (see image)
  • This is designed to fit a 30mm PI-FAN or a 40mm Noctua NF-A4x10. Others may fit as well but I only tested those two.
  • The orientation of the sled matters. Make sure you slide it in the correct way.
• Scew holes
  • This should work for all fans – just use screws to attache the fan as you normally would.

Raspberry Pi 4 Case Multi-Color printing

I don’t have a multi material printer but learned that you can create a multi material print pretty easily without special hardware (as long as the multi material part does not span over to may layers – otherwise it gets a pita). By multi material I don’t mean switching filament at certain layers (which would not have worked in my case because I wanted the top and bottom layers to be on the print surface) but a true multi color print (as seen in the pictures). Here is a short instruction of how it works:
