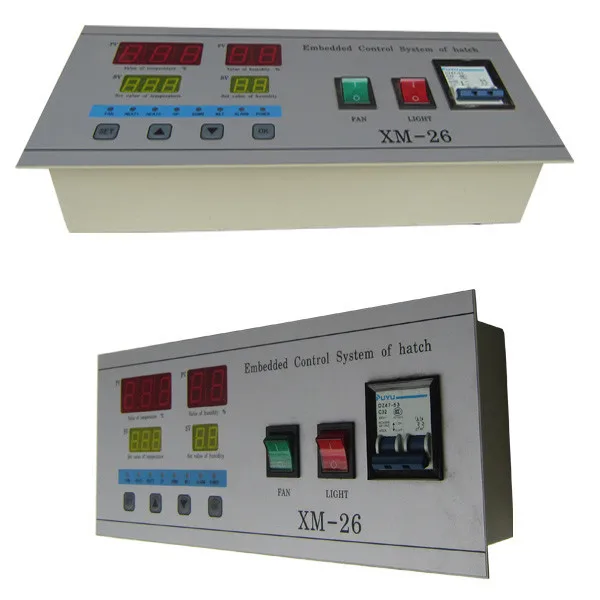

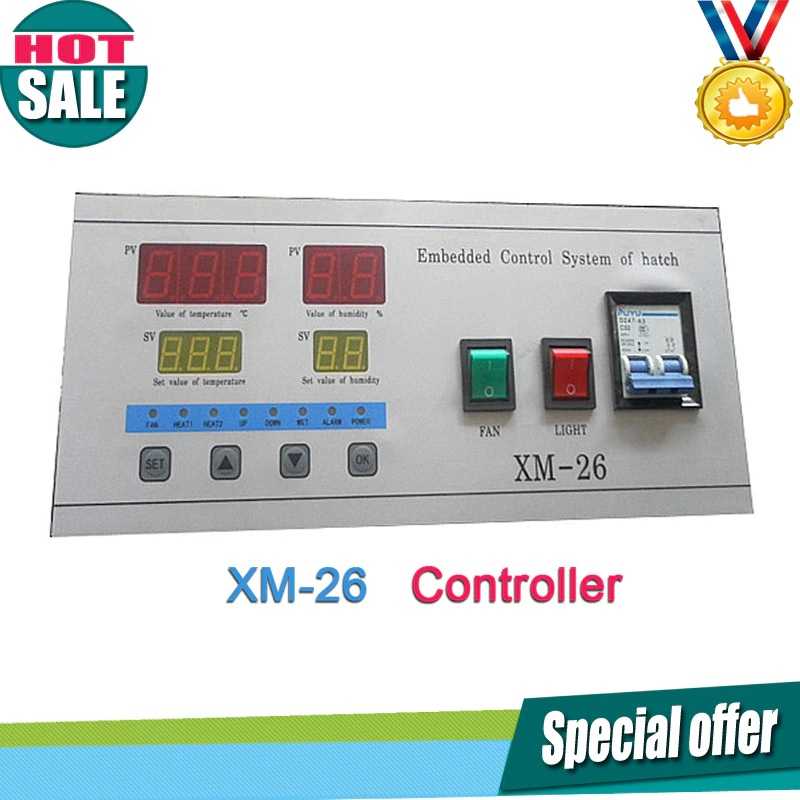

XM 26 controller for incubator 6 incubator parts sale
I. Overview
XM 26 controller for incubator multifunctional hatcher controller developed and produced by our
Company, with the world popular microcomputer control system
II. Main technical indices
1. Temperature display range: 0~99°c
2. Temperature measurement precision: ±0.1°c
3. Humidity display range: 0—99%RH
4. Humidity control precision: ±3%RH
5.Output channels: 7-channel
6. Output current: 10A for temperature control and low temperature
and 1A for others
7. Number of egg turning: max. 999
8. Egg turning cycle: adjustable between 0 ~999 minutes(90 minutes at factory)
9. Time of egg turning: adjustable between 0 ~999 seconds
(180 seconds at factory)
10. Ventilation period: 0 ~999 minutes (adjustable, 0 hour at factory, without
ventilation)
11. Ventilation time: 0 ~999 seconds (adjustable, 30 seconds at factory)
12. Length of measurement line: About 2 meters
II.Working conditions:
1. Working voltage: AC 160V~240V,50HZ
2. Relative humidity: below 85%
3. Ambient temperature: -10°c~60°c

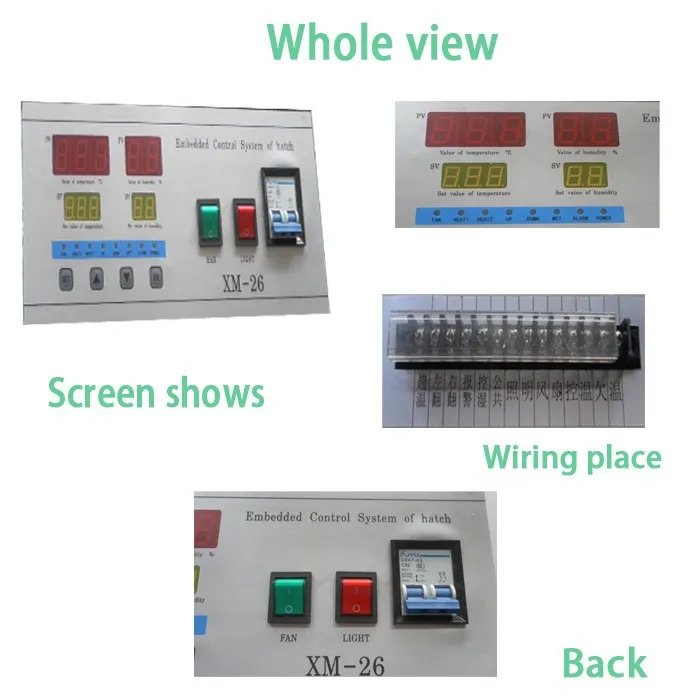

Detailed picture
Import process
1. We will prepare goods after payment
2. We will send goods to EMS company or shipping company .
3. We will give you tracking number or Bill of loading when your goods is on the way
4. Finally your goods will arrive your address or shipping port .

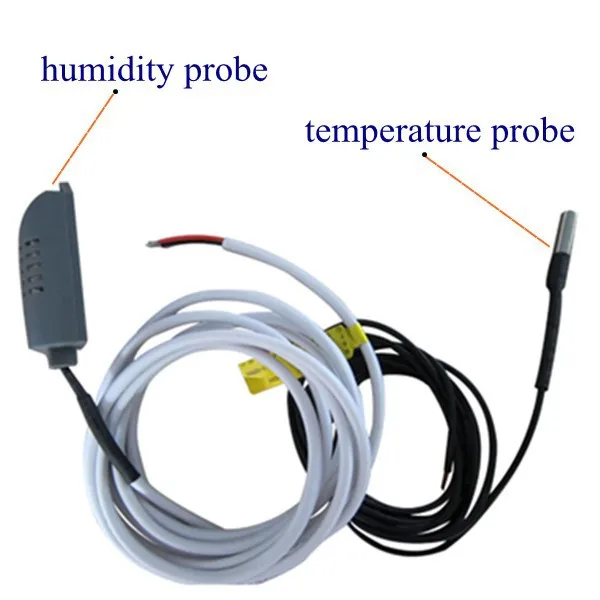

Temperature and humidity sensors attached with the controller XM-26
Features:
1. Number of egg turning: max. 999
2. Egg turning cycle: adjustable between 0 ~999 minutes (90 minutes at factory)
3. Time of egg turning: adjustable between 0 ~999 seconds (180 seconds at factory)
4. Ventilation period: 0 ~999 minutes (adjustable, 0 hour at factory, without ventilation)
5. Ventilation time: 0 ~999 seconds (adjustable, 30 seconds at factory)
6. Length of measurement line: About 2 meters

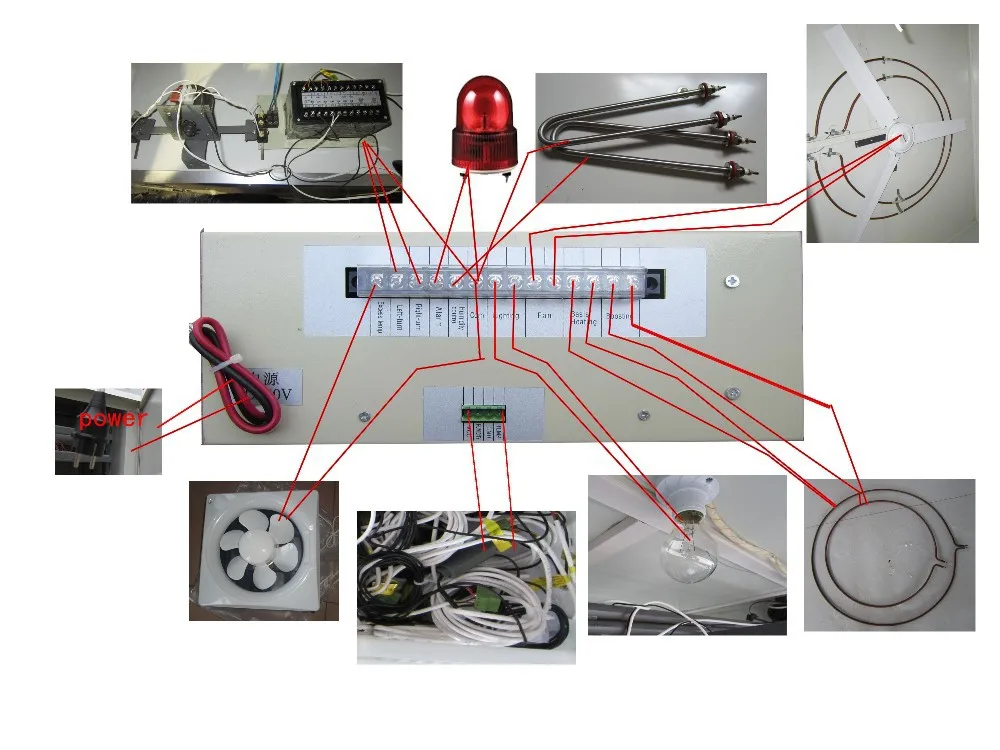

Wire connecting:
XM-18SW Intelligent Incubator Controller Egg Incubator WIFI Remote Intelligent Controller
