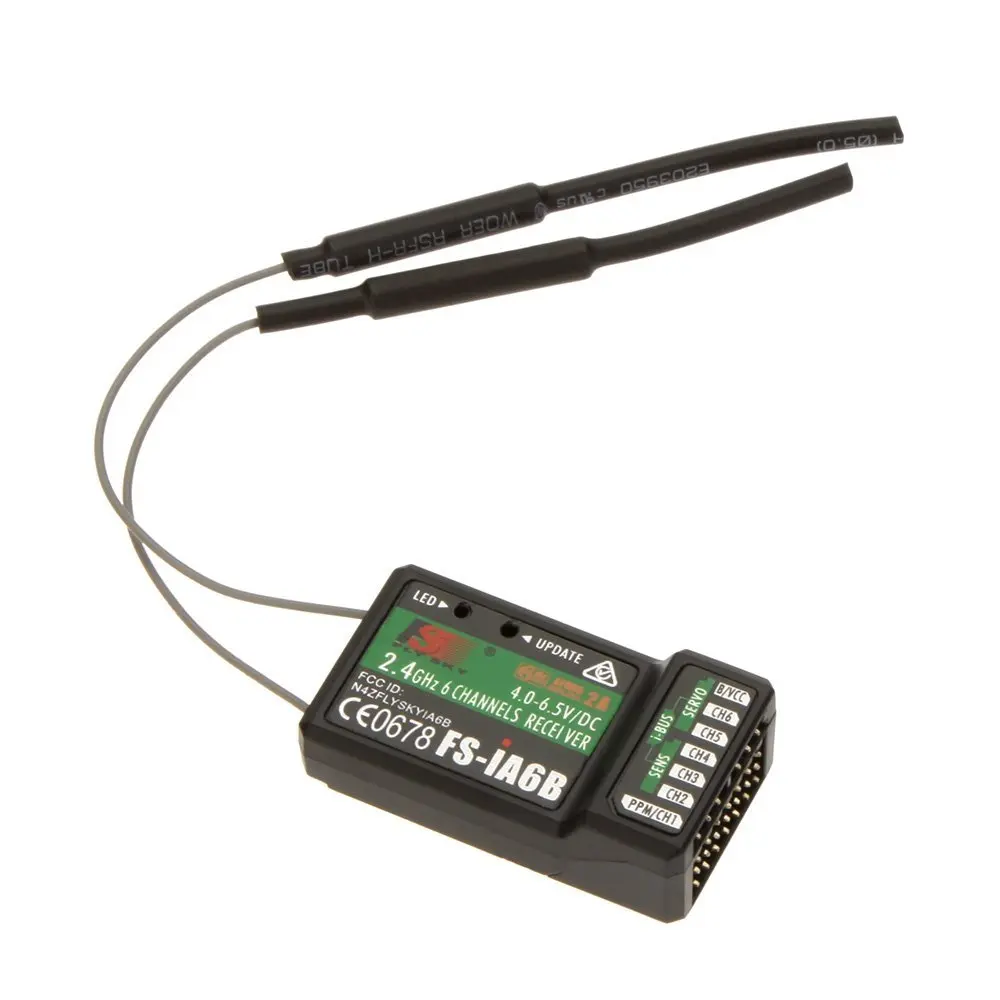

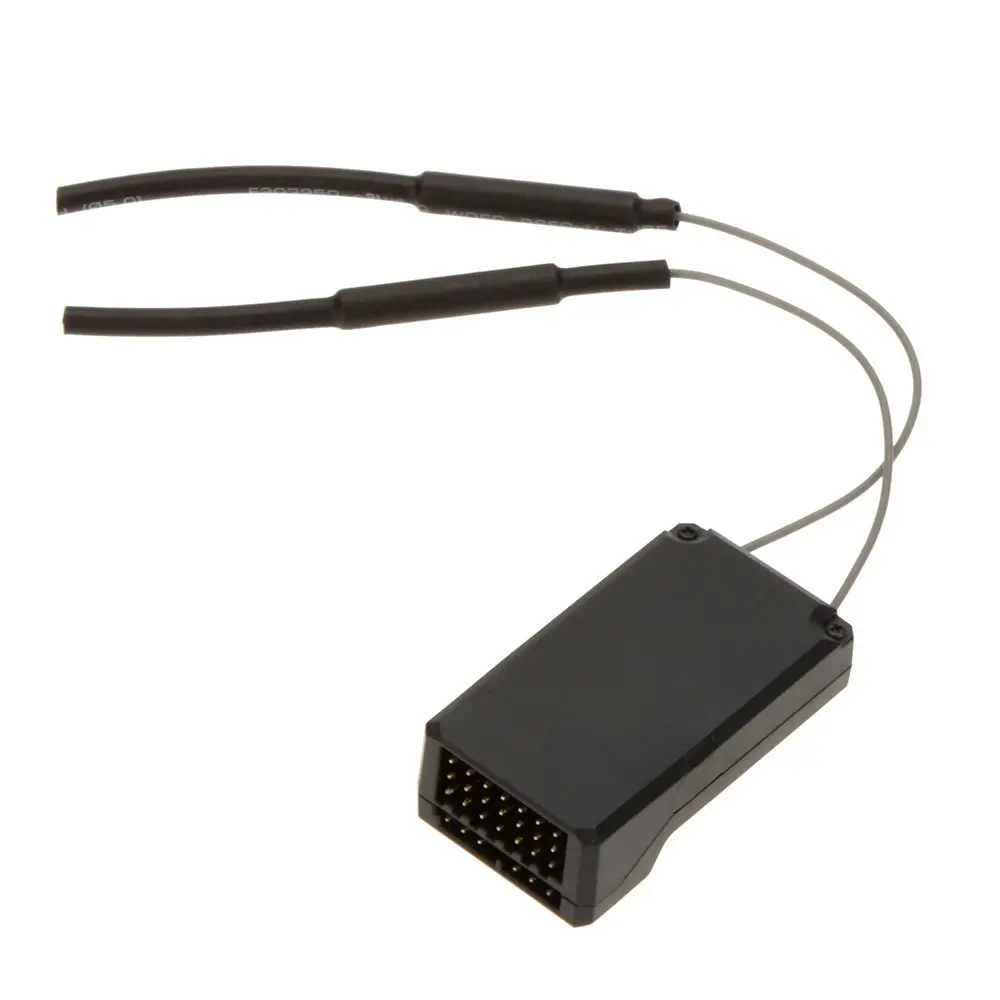

Flysky FS-iA6B 6 Channel Receiver and Flysky fs-i6A

Description

Flysky FS-iA6B 6 Channel Receiver 6CH RC PPM Output with iBus Port for FS i4 i6 i10 RC Transmitter Channels: 6 Channels
Model type: Airplane / Glider / Helicopter
Frequency range: 2.4–2.48GHZ
Band width number: 140
Transmitting power: not moer than 20dBm
RF receiver sensitivity: -105dbm





Features of FS-iA6B 6 Channel Receiver :

Reliable, interference free 2.4GHz AFHDS2A signal operation.
Ultra light weight design.
Easy to bind and very fast link-up.
6 channel receiver compatible Flysky i4 i6 i10 transmitter.
Quick and extremely stable in performance.

Specifications:
Channels: 6 Channels
Model type: Airplane / Glider / Helicopter
Frequency range: 2.4–2.48GHZ
Band width number: 140
Transmitting power: not moer than 20dBm
RF receiver sensitivity: -105dbm
2.4G mode: the second generation of an enhanced version of the automatic FM digital system
Encoding: GFSK
Antenna length: 26mm * 2 (dual antenna)
Input power: 4.0-6.5V DC
Dimension: 47 * 26.2 * 15mm
Weight: 14.9g
Color: Black

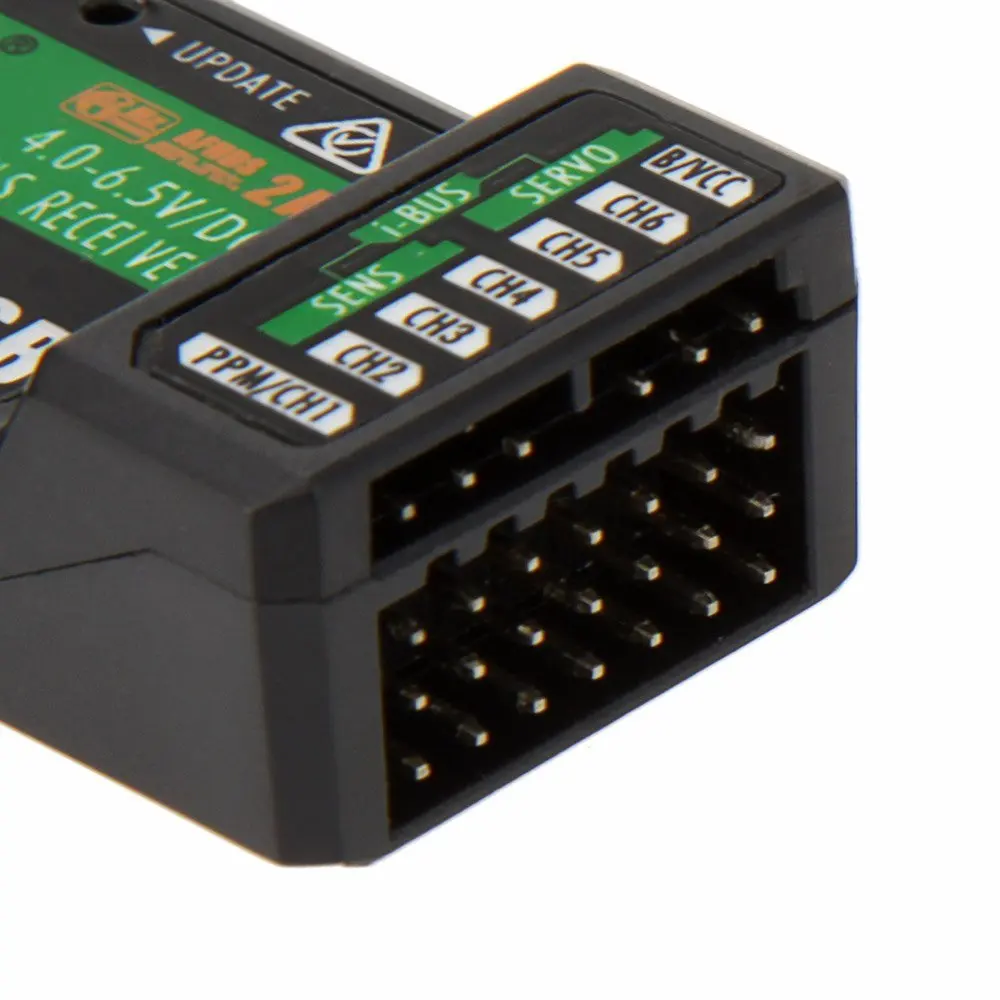

i-Bus interface: Yes
Data acquisition interface: Yes

Package information:
Package size: 7 * 4 * 1.5cm / 2.8 * 1.6 * 0.6in
Package weight: 18g / 0.7oz
Plastic bags

Package list:
1 * Flysky FS-iA6B
1 * Bind plug



Flysky FS-i6 6ch Transmitter Controller FS-iA6B Receiver Pakistan

FlySky FS-i6 6CH Transmitter with Receiver Pakistan



How to Connect:
