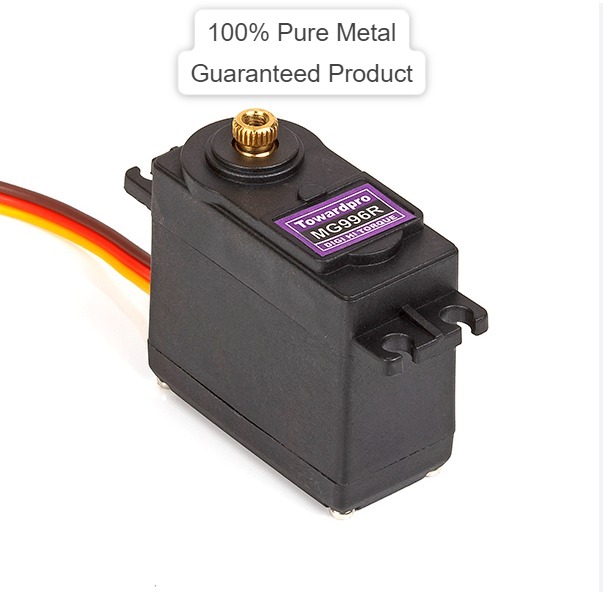

Tower Pro MG996R Metal Gear High Torque Servo Motor 180 & 360 Deg

750.00

Clear

Description

MG996R Servo Motor Metal Gear High Torque

MG996R Servo Motor High value, general purpose, standard size servo with high torque. Easily used with the Arduino Servo library.

Features :

  • Stable and Shock Proof
  • Coreless Servo Motor
  • Metal Gears Servo Motor
  • Double Ball Bearing
  • Connector Wire Length 300mm (12″)
  • Dimensions of motor : 40mm x 19mm x 43mm (approx 1.5″ x 3/4″ x 1.5″)
  • Weight : 55g (just over 2 oz)
  • Operating Speed : 0.17sec / 60 degrees (4.8V no load)
  • Operating Speed : 0.13sec / 60 degrees (6.0V no load)
  • Stall Torque : 9 kg-cm (180.5 oz-in) at 4.8V
  • Stall Torque : 12 kg-cm (208.3 oz-in) at 6V
  • Voltage : 4.8 – 7.2Volts
  • Color:Black
  • Connector Wire: Heavy Duty, 11.81″ (300mm)

OTHER PRODUCTS

775 High Power High Torque Electric DC Motor 12-24V

Bracket Mounting Acrylic for SG90 MG90 Servo Motor



Servo Motor with Arduino | MG996 | SdevElectronics

Additional information

Rotation

180 Degree, 360 Degree
