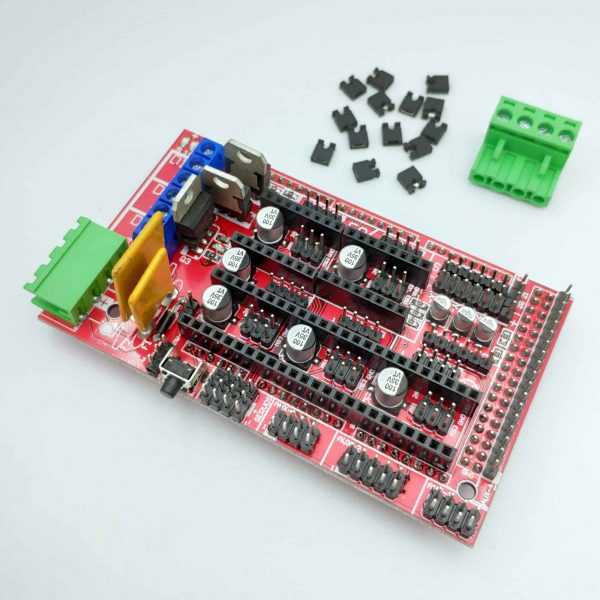

RAMPS 1.4 3D Printer Control Board in Pakistan

RAMPS 1.4 3D Printer Control Board Fully assembled & tested,no soldering required. It is designed to fit for entire electronics needed a Reparap in one small package for low cost

The module design includes plug in stepper drivers and extruder control electronics on an Arduino Mega shield for easy service,part replacement,upgrade-ability and expansion

A number of Arduino expansion boards can be added to the system as long as the main

is kept to the top of the stack.

Features of RAMPS 1.4 3D Printer Control Board

=========

1. Standard interfaces (as that of extruder)

2. Reserved GCI like I2C and RS232

3 MOSFET 3 MOSFET are applied to the heater/ fan and thermistor circuit.

4. Adding another 5A to protect the component parts.

5. An 11A fuse is added to the hotbed

6. Support 5 stepper drive board

7. The adoption of Pin Header as pololu makes it more convenient to repair or change.

8. I2C and SPI are reserved for expanding

9. All the MOSFET can be controlled by PWM

10. Use the interface of servo motor to adjust the level of printing platform automatically.

11. Adding a SD module for SD ramps module.

12. LED can indicate the status of the heater (the open and close of MOS).

13. 2 stepper motor for Z axis in parallel.
