Description

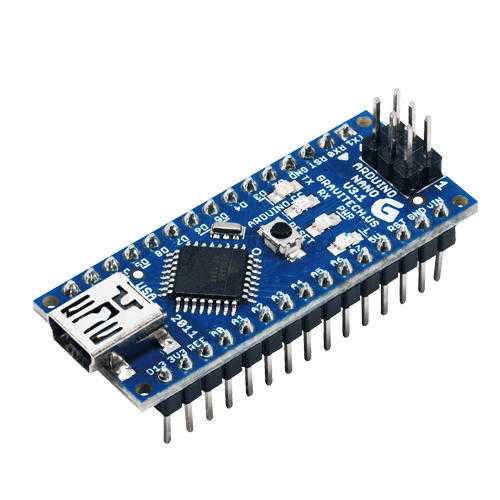

The Arduino Nano V3 micro Controller is a small, complete, and breadboard-friendly board based on the ATmega328 (Arduino Nano 3.x). Arduino Nano has more or less the same functionality of the Arduino UNO but in a different package. Arduino Nano Micro Controller lacks only a DC power jack and works with a Mini-B USB cable instead of a standard one.
Specifications of Arduino Nano V3 micro Controller:
- Microcontroller : ATmega328 (arduino nano).
- Operating Voltage (logic level) : l5 V.
- Input Voltage (recommended) : 7-12 V.
- Input Voltage (limits) : 6-20 V.
- Digital I/O Pins: 14 (of which 6 provide PWM output).
- Analog Input Pins: 8.
- DC Current per I/O Pin: 40 mA.
- Flash Memory: 16 KB (ATmega168) or 32 KB (ATmega328) of which 2 KB used by the boot loader.
- SRAM : 1 KB (ATmega168) or 2 KB (ATmega328).
- EEPROM: 512 bytes (ATmega168) or 1 KB (ATmega328).
- Clock Speed: 16 MHz.
- Dimensions : 0.73″ x 1.70″.
- Length: 45 mm.
- Width : 18 mm.
- Weight: 5 g.
Features of Arduino Nano V3 micro Controller:
- Automatic reset during program download
- Power OK blue LED
- Green (TX), red (RX) and orange (L) LED
- Auto-sensing/switching power input
- Small mini-B USB for programming and serial monitor
- ICSP header for direct program download
- Standard 0.1” spacing DIP (breadboard friendly)
- Manual reset switch
Related documents:
Package includes:
- 1 x Arduino Nano V3 Arduino Nano
Online Shopping website for Arduino Nano V3. Here you get Arduino Nano V3 at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, and all over Pakistan. Best Quality nano v3 and v5.
After Soldering You will get this board like these images.
